Network Gateway Ecu: Installation
WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL NETWORK GATEWAY ECU

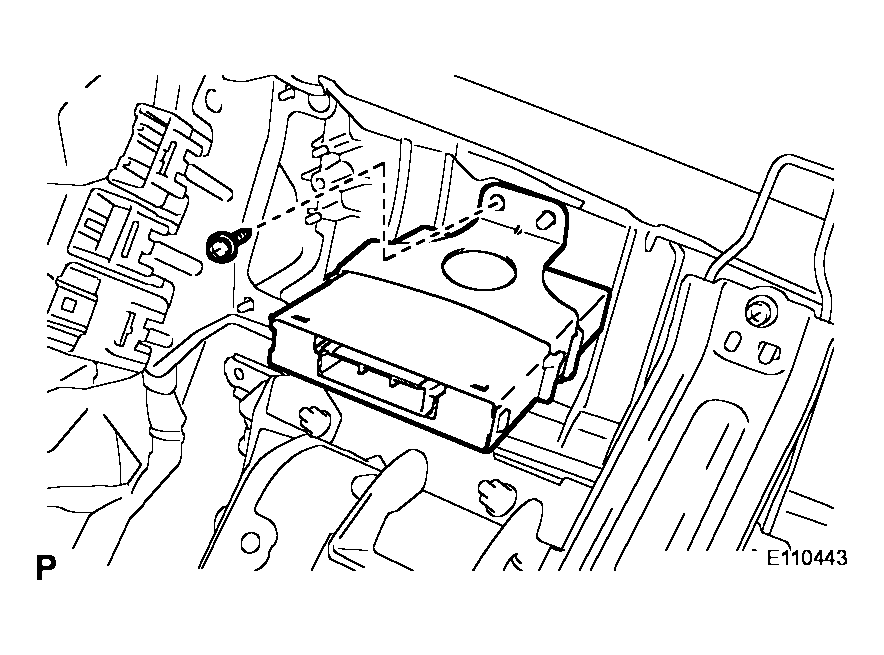

- Install the network gateway ECU with the screw.
- Connect the connector.
- INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (See INSTALLATION )
- INSTALL NO.2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See INSTALLATION )
- INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH (See INSTALLATION )
- INSTALL FRONT DOOR SCUFF PLATE RH (See INSTALLATION )
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- PERFORM INITIALIZATION NOTE: Some systems need initialization when disconnecting the cable from negative battery terminal. (See INITIALIZATION )
