Radio Receiver Power Source Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.

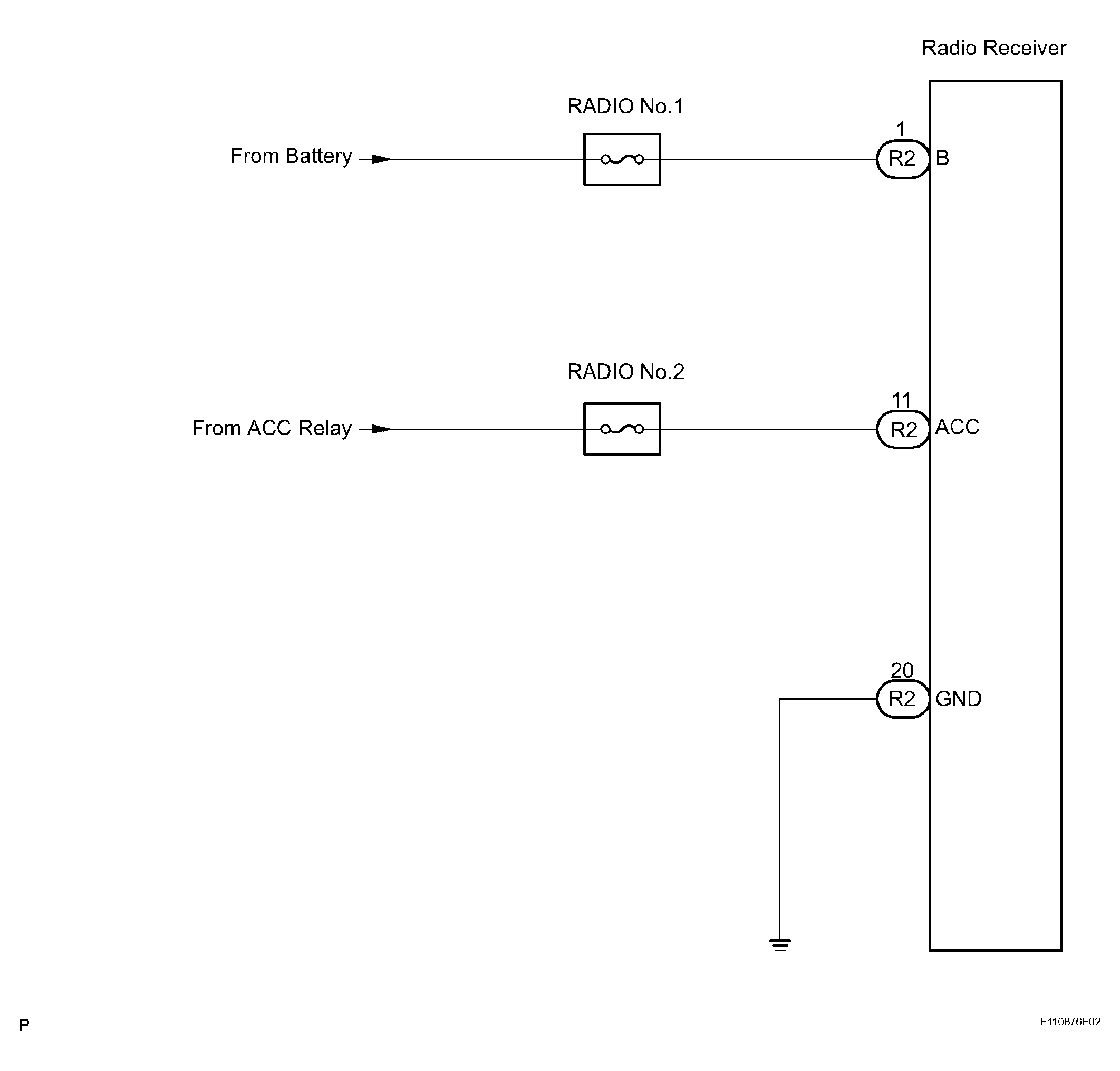

Fig 1: Radio Receiver Power Source Circuit Wiring Diagram
G04115504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. INSPECT RADIO RECEIVER
    1. Disconnect the radio receiver R2 connector.
    2. Measure the resistance according to the value in the table below.

      Standard resistance

      RESISTANCE SPECIFIED CONDITION

      Tester connection Condition Specified condition
      GND - Body ground Always Below 1 Ω
    3. Measure the voltage according to the values in the table below.

      Standard voltage

      VOLTAGE SPECIFIED CONDITION

      Tester connection Condition Specified condition
      B - GND Always 10 to 14 V
      ACC - GND Ignition SW ACC 10 to 14 V
      Fig 2: Identifying Radio Receiver R2 Connector
      G04115505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: RETURN TO THE ORIGINAL INSPECTION FLOW BECAUSE THE CHECK RESULT IS NORMAL
