Center Airbag Sensor Assembly: Installation

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL CENTER AIRBAG SENSOR ASSEMBLY
    1. Check that the ignition switch is off.
    2. Check that the battery negative (-) terminal is disconnected.
      CAUTION: After disconnecting the negative battery terminal, wait for at least 90 seconds before starting the operation.
    3. Temporarily install the center airbag sensor assembly with the 3 bolts.

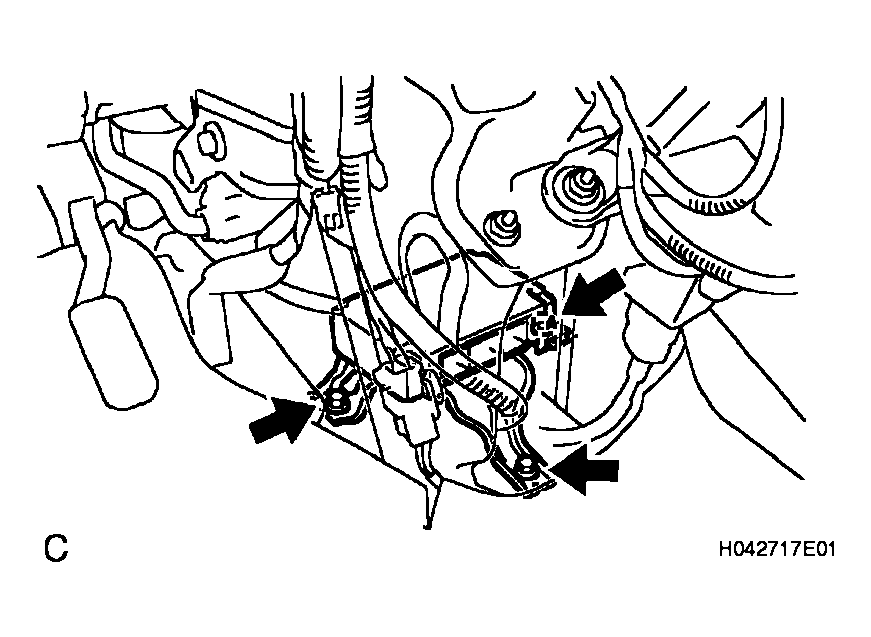

      Fig 1: Identifying Center Airbag Sensor Assembly
      G04114632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • If the center airbag sensor assembly has been dropped, or there are any cracks, dents or other defects in the case, bracket or connector, replace it with a new one.
      • When installing the center airbag sensor assembly, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.
    4. Tighten the 3 bolts to the specified torque.

      Torque: 17.5 N*m (179 kgf*cm, 13 ft.*lbf)

    5. Check that there is no looseness in the installation parts of the center airbag sensor assembly.
    6. Connect the 3 connectors to the center airbag sensor assembly.
    7. Check that the water-proof sheet is properly set.
  2. INSTALL AIR DUCT REAR NO.1
  3. INSTALL AIR DUCT REAR NO.2
  4. INSTALL CONSOLE COVER LOWER
    1. Connect the connector to the console cover lower.
    2. Install the console cover lower with the 2 screws.
      Fig 2: Identifying Console Cover Lower
      G04114633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL CONSOLE BOX NO.1 DUCT
  6. INSTALL REAR CONSOLE BOX (See  INSTALLATION  )
  7. INSTALL CONSOLE BOX HOLE COVER (See  INSTALLATION  )
  8. INSTALL CONSOLE BOX NO.2 HOLE COVER

    HINT:

    Use the same procedures for the console box No.2 hole cover and the console box hole cover.

  9. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See  INSTALLATION  )
  10. INSTALL FLOOR CARPET COVER CENTER LH (See  INSTALLATION  )
  11. INSTALL FLOOR CARPET COVER CENTER RH

    HINT:

    Use the same procedures for the floor carpet cover center RH and the floor carpet cover center LH.

  12. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (See  INSTALLATION  )
  13. INSTALL INSTRUMENT PANEL NO.2 UNDER COVER SUB-ASSEMBLY (See  INSTALLATION  )
  14. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedures for the cowl side trim subassembly RH and the cowl side trim sub-assembly LH (See INSTALLATION ).

  15. INSTALL FRONT DOOR OPENING TRIM RH WEATHERSTRIP
  16. INSTALL FRONT DOOR SCUFF LH PLATE (See  INSTALLATION  )
  17. INSTALL INSTRUMENT PANEL FINISH PANEL SUBASSEMBLY LOWER (See  INSTALLATION  )
  18. INSTALL FRONT DOOR SCUFF RH PLATE

    HINT:

    Use the same procedures for the front door scuff RH plate and the front door scuff LH plate.

  19. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER (See  INSTALLATION  )
  20. INSTALL CONSOLE PANEL UPPER FRONT (See  INSTALLATION  )
  21. INSTALL FRONT SEAT ASSEMBLY (See  INSTALLATION  )
  22. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  23. PERFORM INITIALIZATION
    1. Perform initialization (See INITIALIZATION ).

      HINT:

      Some systems need initialization when disconnecting the cable from the negative battery terminal.

  24. INSPECT CHECK POWER SEAT FUNCTION
  25. INSPECT SEAT HEATER OPERATION
  26. INSPECT SRS WARNING LIGHT
    1. Inspect the SRS warning light (See DIAGNOSIS SYSTEM  ).
