DTC P0335 Crankshaft Position Sensor "A" Circuit: Wiring Diagram

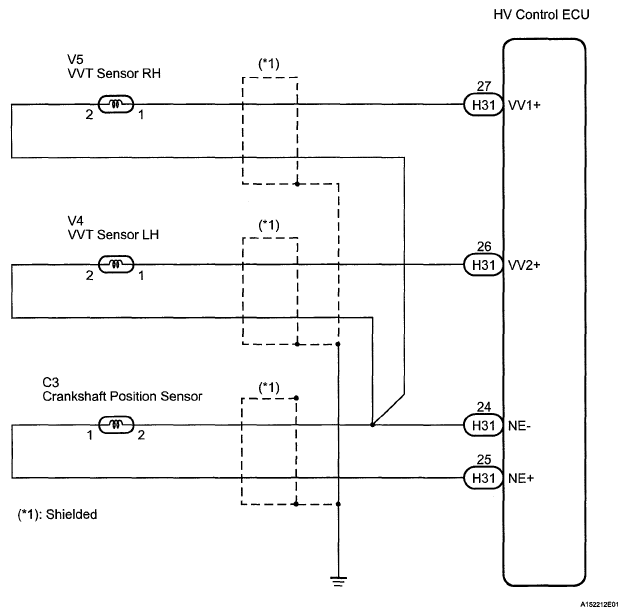

Fig 1: Crankshaft Position Sensor - Wiring Diagram

G05275620

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
