TC and CG Terminal Circuit: Wiring Diagram

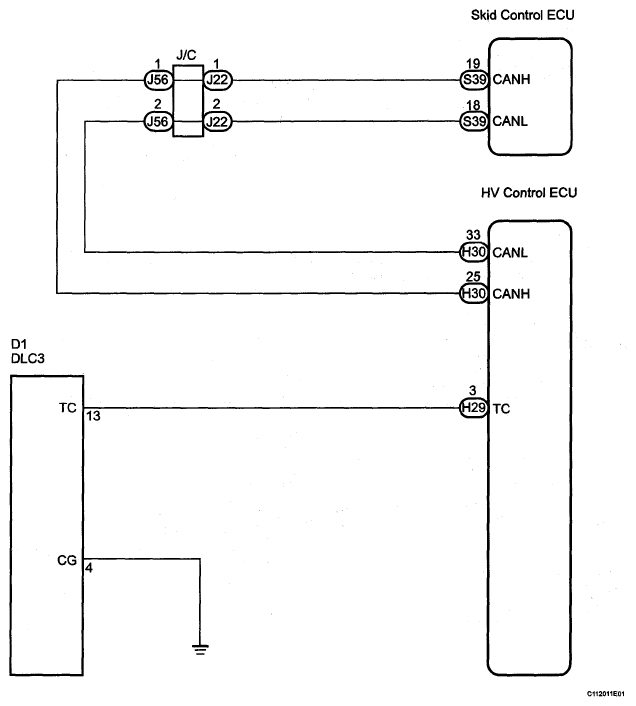

Fig 1: TC And CG Terminal Circuit - Wiring Diagram

G05276935

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
