Inspection Procedure

1. Connect the intelligent tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch on.
3. Perform the ACTIVE TEST by following the directions on the tester screen.

   D_SEAT (Position control ECU and switch assembly)

   TEST DETAILS



   Item	Test Details	Diagnostic Note
   RECLINING	Test detail: reclining operation FRONT/REAR Vehicle condition: stopped	-
   F VERTICAL	Test detail: front vertical operation UP/DOWN Vehicle condition: stopped	-
   LIFTER	Test detail: lifter operation UP/DOWN Vehicle condition: stopped	-
   SLIDE	Test detail: sliding operation UP/DOWN Vehicle condition: stopped	-

   OK: Each power seat motor operates.

NG: GO TO step 2

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

1. Inspect the power seat motor (See FRONT SEAT FRAME WITH ADJUSTER ).

   OK: The power seat motor operates.

NG: REPLACE FRONT SEAT ADJUSTER SUB-ASSEMBLY (POWER SEAT MOTOR)

OK: Go to next step

1. Disconnect the position control ECU and switch assembly connector and power seat motor connectors.
2. Measure the resistance according to the value(s) in the table below.

   Resistance

   TESTER CONNECTION AND SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   P33-2 (SLD+) - P38-1	Always	Below 1 Ω
   P33-3 (SLD-) - P38-2	Always	Below 1 Ω
   P33-4 (FRV-) - P34-2	Always	Below 1 Ω
   P33-6 (FRV+) - P34-1	Always	Below 1 Ω
   P33-7 (LFT+) - P35-2	Always	Below 1 Ω
   P33-9 (LFT-) - P35-1	Always	Below 1 Ω
   P33-8 (RCL+) - P37-2	Always	Below 1 Ω
   P33-10 (RCL-) - P37-1	Always	Below 1 Ω
   P33-2 (SLD+) - Body ground	Always	10 kΩ or higher
   P33-3 (SLD-) - Body ground	Always	10 kΩ or higher
   P33-4 (FRV-) - Body ground	Always	10 kΩ or higher
   P33-6 (FRV+) - Body ground	Always	10 kΩ or higher
   P33-7 (LFT+) - Body ground	Always	10 kΩ or higher
   P33-9 (LFT-) - Body ground	Always	10 kΩ or higher
   P33-8 (RCL+) - Body ground	Always	10 kΩ or higher
   P33-10 (RCL-) - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

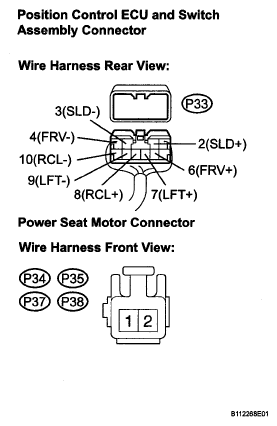

Fig 1: Identifying Position Control ECU And Switch Assembly Connector And Power Seat Motor Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
