TRAC OFF Indicator Light, TRAC OFF Switch Circuit: Wiring Diagram

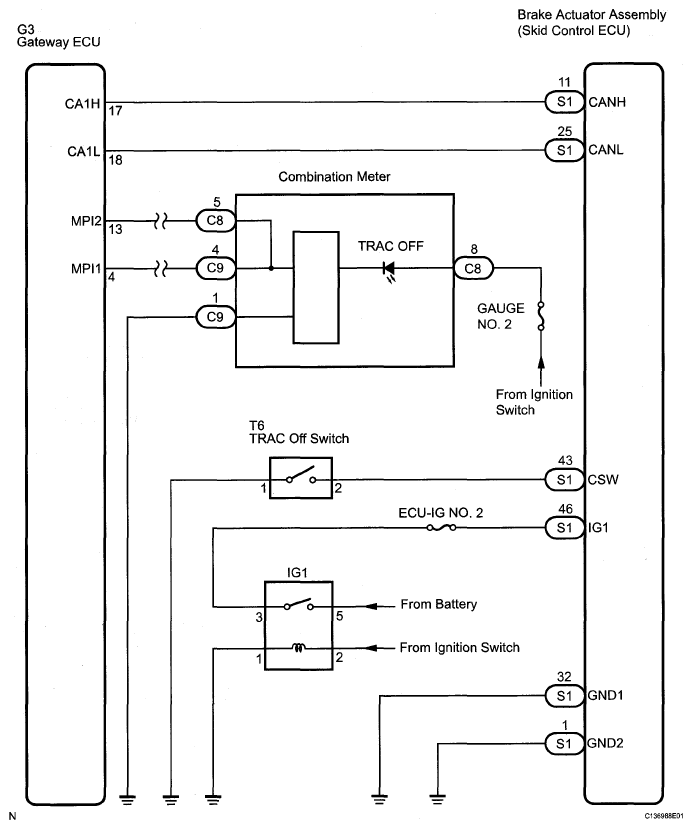

Fig 1: Identifying TRAC Off Indicator Light Wiring Diagram

G05272762

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
