DTC C1249/49: Open in Stop Light Switch Circuit: Wiring Diagram

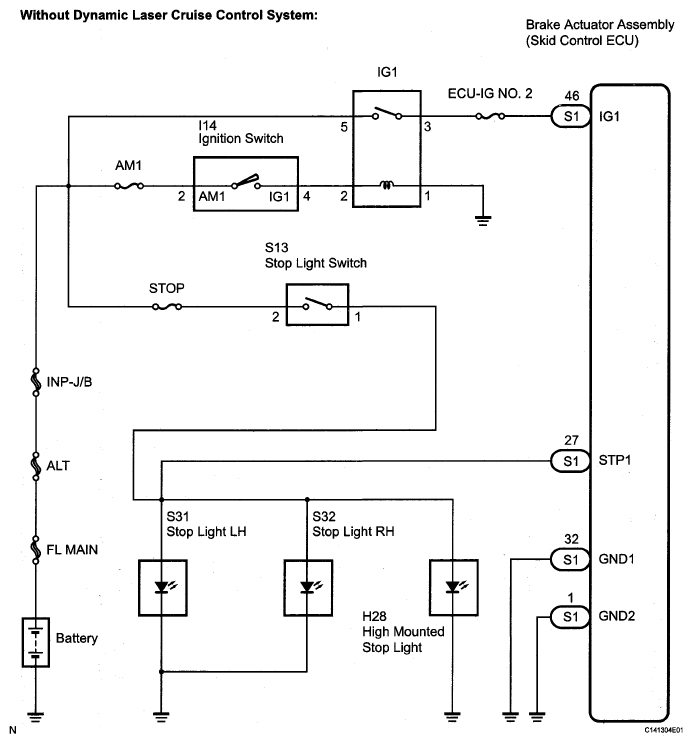

Fig 1: Identifying Open In Stop Light Switch Circuit Wiring Diagram (Without Dynamic Laser Cruise Control System)
G05272718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

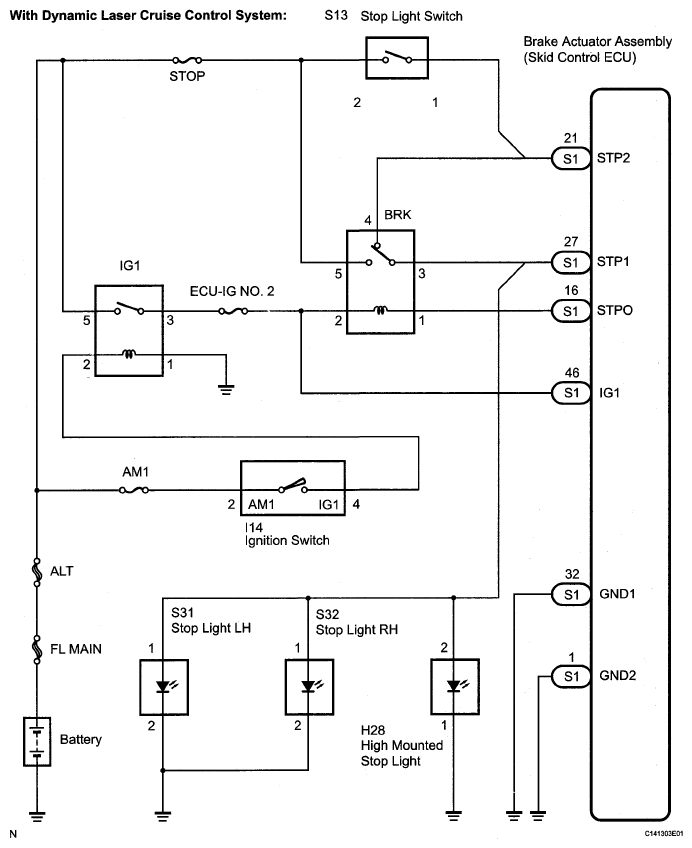

Fig 2: Identifying Open In Stop Light Switch Circuit Wiring Diagram (With Dynamic Laser Cruise Control System)
G05272719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
