DTC P0717 Input Speed Sensor Circuit No Signal: Wiring Diagram

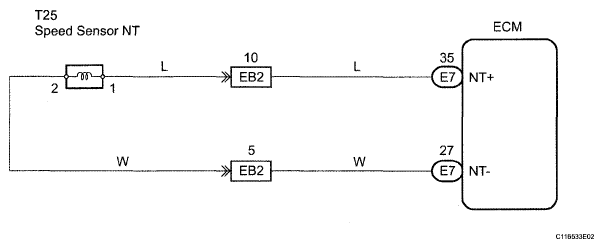

Fig 1: Input Speed Sensor - Wiring Diagram

G05282647

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
