Rear Cooling Unit: Components

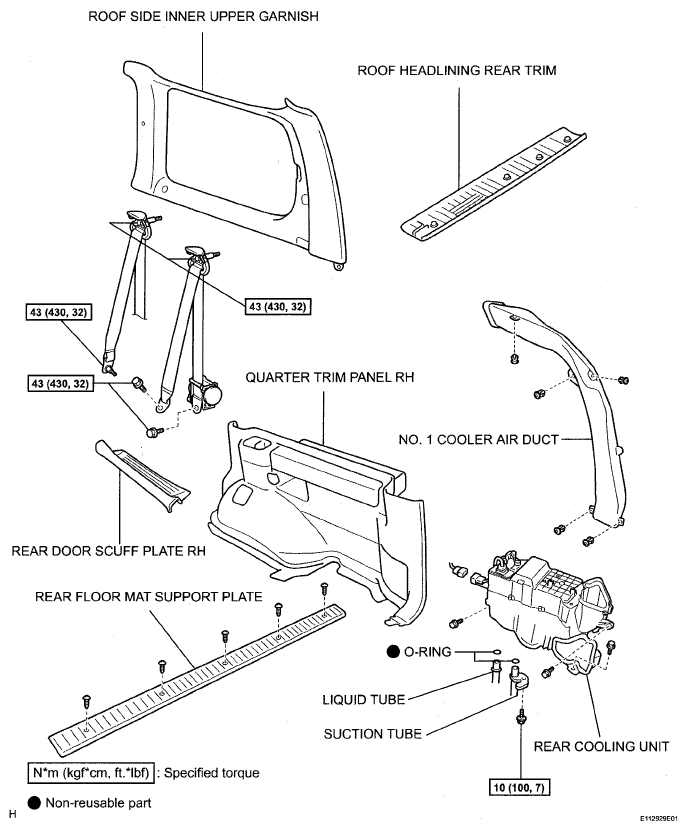

Fig 1: Rear Cooling Unit Components With Torque Specifications (1 Of 2)
G05284233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

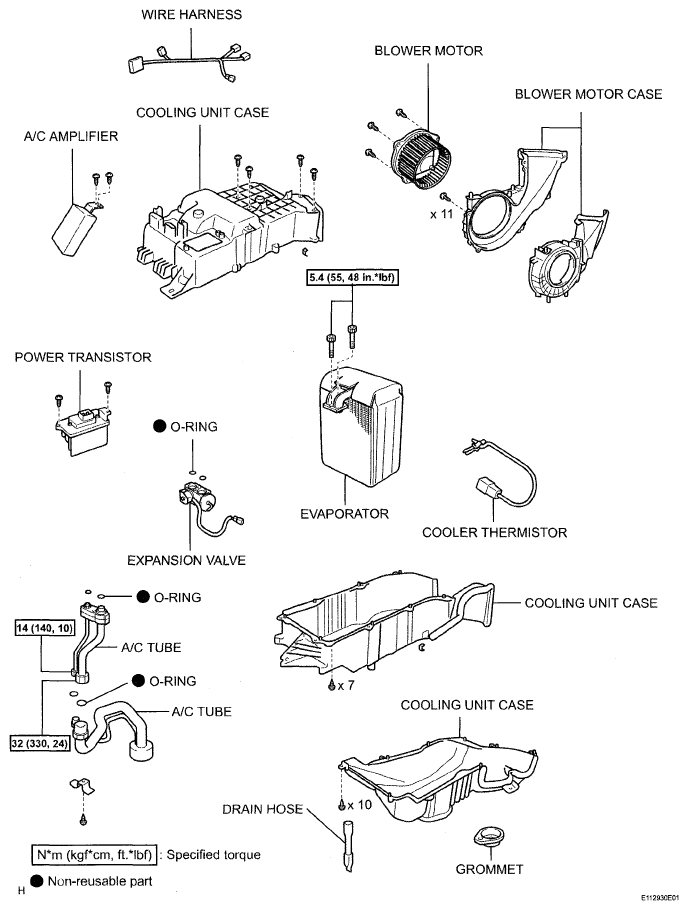

Fig 2: Rear Cooling Unit Components With Torque Specifications (2 Of 2)
G05284234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
