DTC 22 Compressor Lock Sensor Circuit: Wiring Diagram

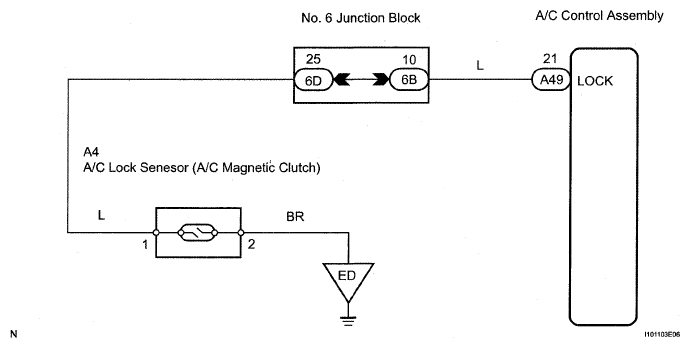

Fig 1: Compressor Lock Sensor - Wiring Diagram

G05284139

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
