DTC C1268/68 Transfer "L4" Position Switch Circuit: Wiring Diagram

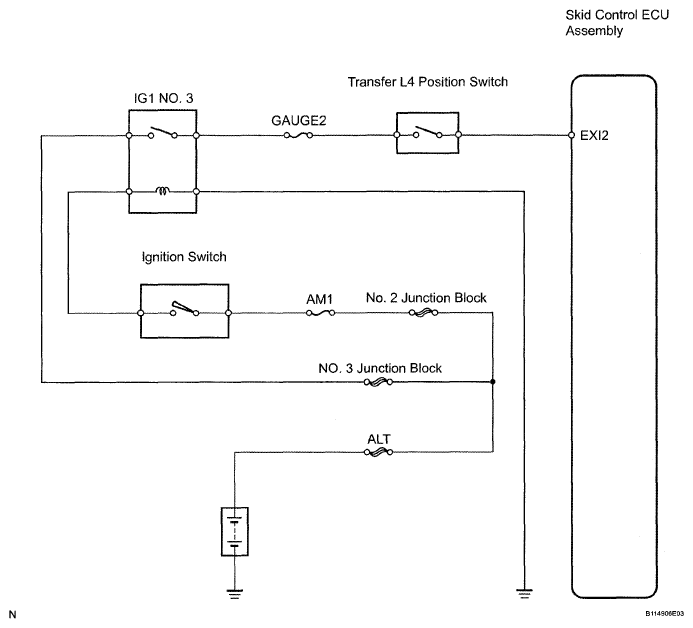

Fig 1: Transfer L4 Position Switch - Wiring Diagram

G05197659

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
