Own Voice cannot be Heard, too Quiet or Distorted

1. Check if the other end can hear your voice properly.

OK:

Own voice can be heard correctly.

NG: REPLACE CELLULAR PHONE

OK: Go To Next Step

1. Check if the mute switch is set to ON.

OK:

MUTE switch is not set to ON.

NG: TURN MUTE SWITCH OFF

OK: Go To Next Step

1. Enter the "Microphone Check" mode (See DTC CHECK / CLEAR  ).
2. Follow the directions on the screen. Check if the word recognition indicator is displayed in green for each item.

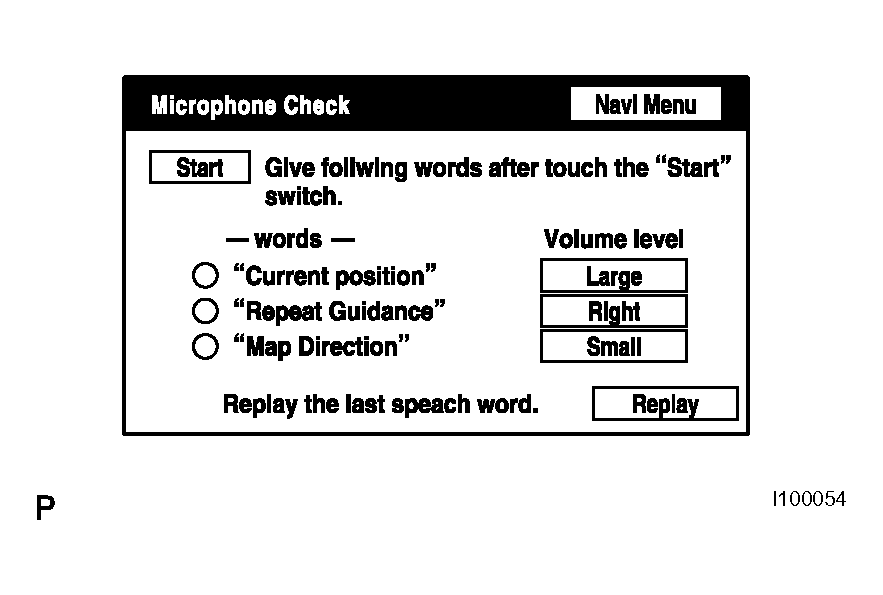

Fig 1: Displaying Microphone Check

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

OK: REPLACE MULTI-DISPLAY
