Diagnosis System
- DESCRIPTION
- Lighting system data and the Diagnostic Trouble Codes (DTCs) can be read through the Data Link Connector 3 (DLC3) of the vehicle. When the system seems to be malfunctioning, use the intelligent tester to check for malfunctions and perform repairs
- CHECK DLC3
HINT:

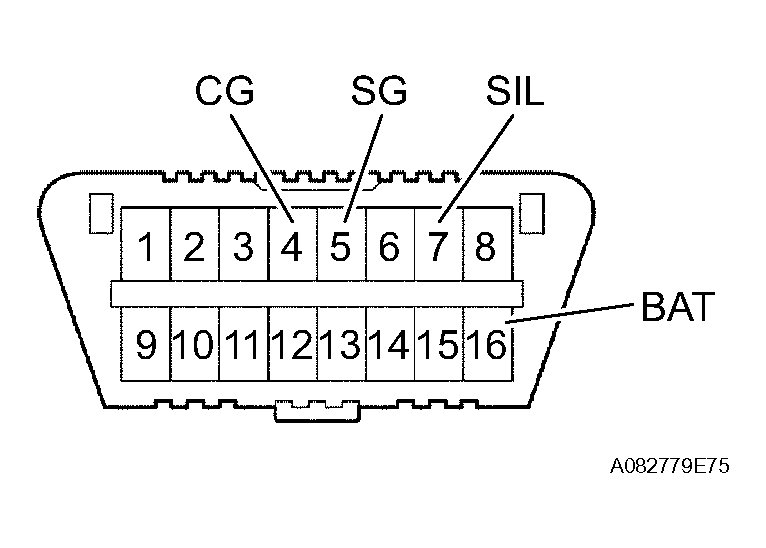

The vehicle uses ISO 9141-2 communication protocol. The terminal arrangement of the DLC3 complies with SAE J1962 and matches the ISO 9141-2 format.
TERMINALS CONDITION REFERENCE
| Symbols (Terminal No.) | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| CG (4) - Body ground | Chassis ground | Always | Below 1 Ω |
| SG (5) - Body ground | Signal ground | Always | Below 1 Ω |
| SIL (7) - SG (5) | Bus "+" line | During transmission | Pulse generation |
| BAT (16) - Body ground | Battery positive | Always | 10 to 14 V |
If the result is not as specified, the DLC3 may have a malfunction. Repair or replace the harness and connector.
HINT:

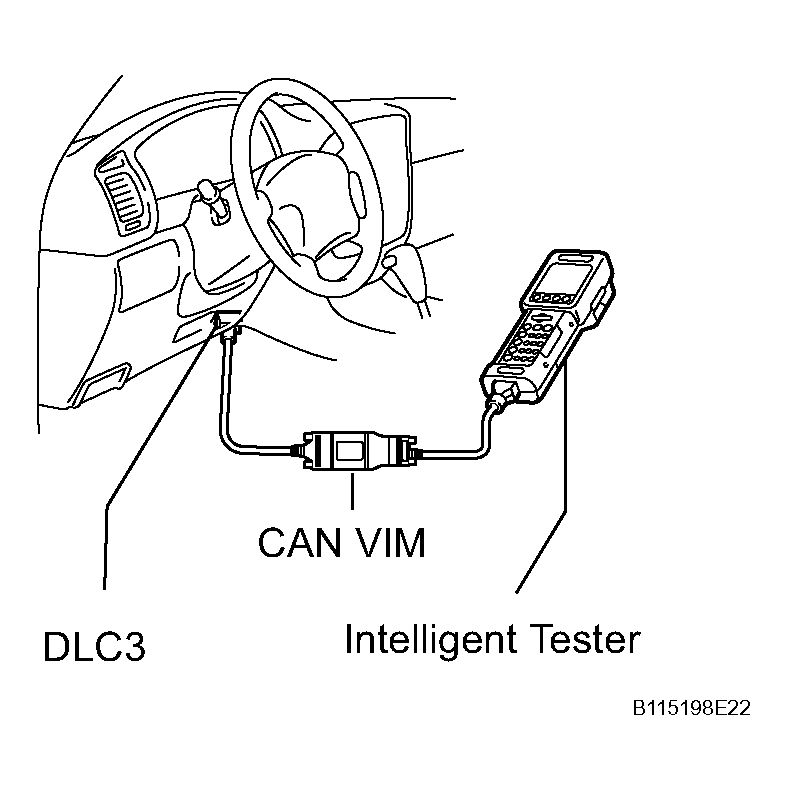

Connect the cable of the intelligent tester (with CAN VIM) to the DLC3, turn the ignition switch ON and attempt to use the tester. If the display indicates that a communication error has occurred, there is a problem wither with the vehicle or with the tester.
- If communication is normal when the tester is connected to another vehicle, inspect the DLC3 of the original vehicle.
- If communication is still not possible when the tester is connected to another vehicle, the problem may be in the tester itself. Consult the Service Department listed in the tester's instruction manual.
