Inspection Procedure

1. Turn the ignition switch from ON to OFF.
2. Turn the ignition switch ON and wait 10 seconds.
3. Check for the DTC again and wait for 20 seconds.

   OK:

   DTC 5-2 is not output.

OK: CLEAR HISTORIC DTC

NG: Go to next step

1. Check for DTC using the intelligent tester.

   Proceed to

   RESULT CHART



   Result	Proceed to
   Related to supplemental restraint system	A
   No DTC	B

A:  GO TO SUPPLEMENTAL RESTRAINT SYSTEM

B: Go to next step

1. Disconnect the cable from the negative (-) battery terminal and wait 90 seconds.
2. Disconnect the M14 ECU connector.
3. Disconnect the C32 airbag connector.
4. Measure the resistance of the wire harness side connectors.

   Standard resistance

   RESISTANCE SPECIFICATIONS



   Tester Connection	Specified Condition
   M14-16 (GSW) - C32-18 (GSW3)	Below 1 Ω
   M14-16 (GSW) or C32-18 (GSW3) -Body ground	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR THEN CLEAR HISTORIC DTC

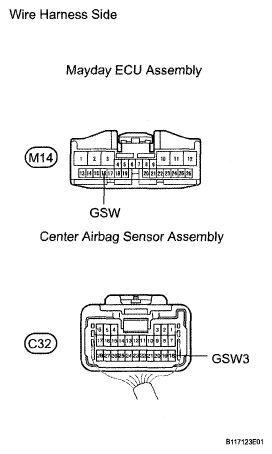

Fig 1: Identifying M14 ECU Connector And C32 Airbag Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: REPLACE MAYDAY ECU ASSEMBLY TOGETHER WITH MAYDAY BATTERY AND THEN PERFORM REGISTRATION
