With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Check the operation on "MIR CHNG SW - R" or "MIR CHNG SW-L" in the DATA MONITOR.

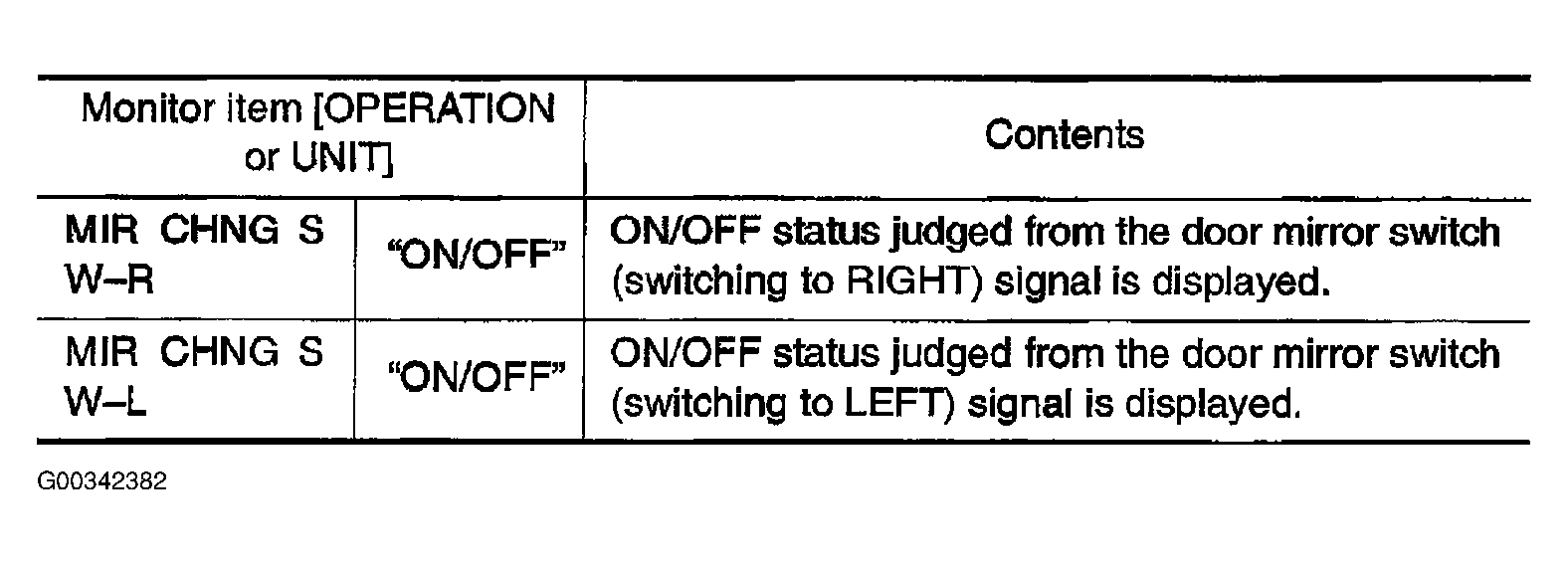

Fig 1: Data Monitor Chart
G00342382Courtesy of NISSAN MOTOR CO., U.S.A.

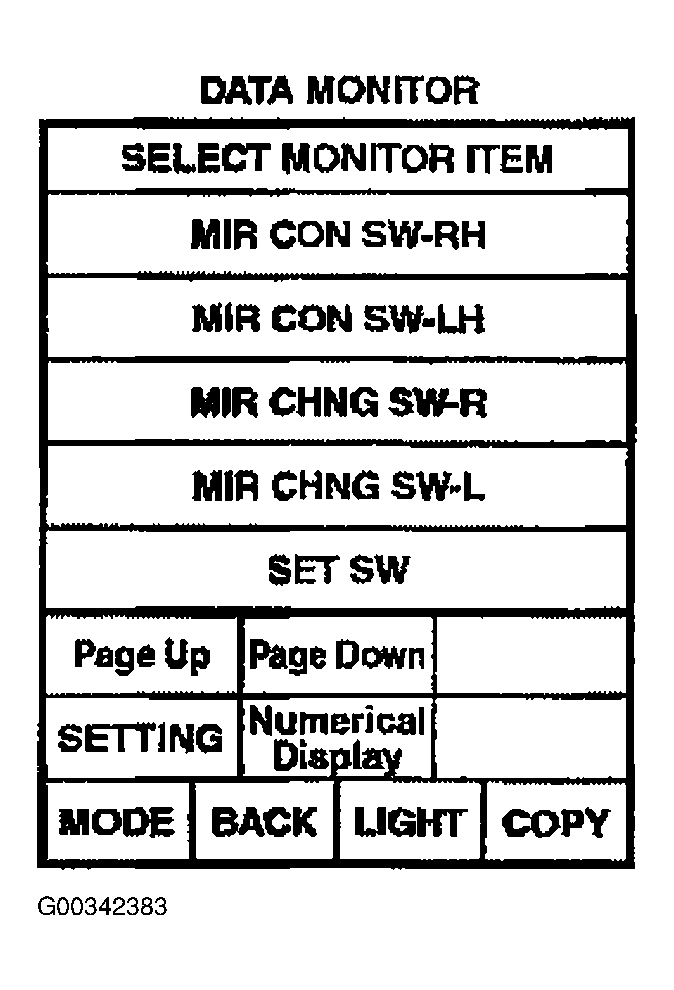

Fig 2: CONSULT-II Display
G00342383Courtesy of NISSAN MOTOR CO., U.S.A.
