DTC C1231/31 Steering Angle Sensor Circuit Malfunction: Wiring Diagram

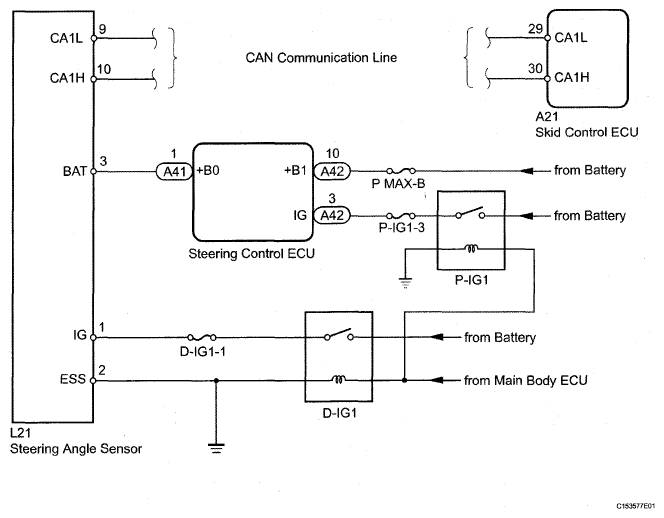

Fig 1: Steering Angle Sensor Circuit Malfunction - Wiring Diagram

G04949618

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
