DTC B2654 Headrest Sensor Malfunction: Wiring Diagram

Fig 1: Wiring Diagram - Headrest Sensor Malfunction (Driver Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

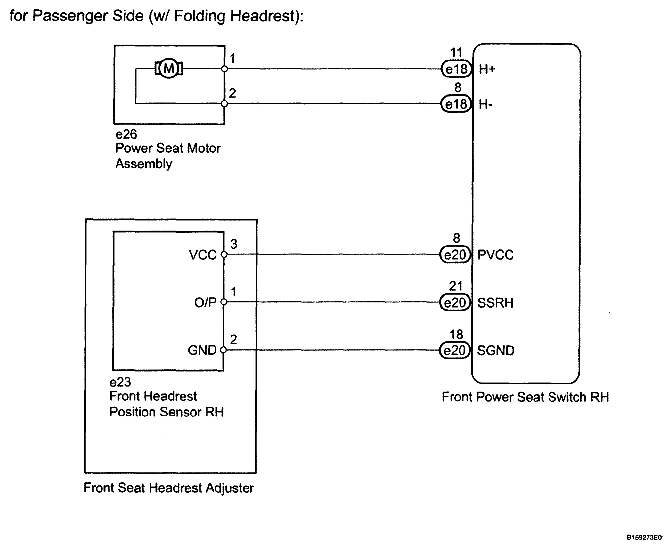

Fig 2: Wiring Diagram - Headrest Sensor Malfunction (Passenger Side (W/ Folding Headrest))

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Wiring Diagram - Headrest Sensor Malfunction (Passenger Side (W/ Normal Headrest))

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
