Driver Side Door Entry Lock and Unlock Functions do not Operate: Wiring Diagram

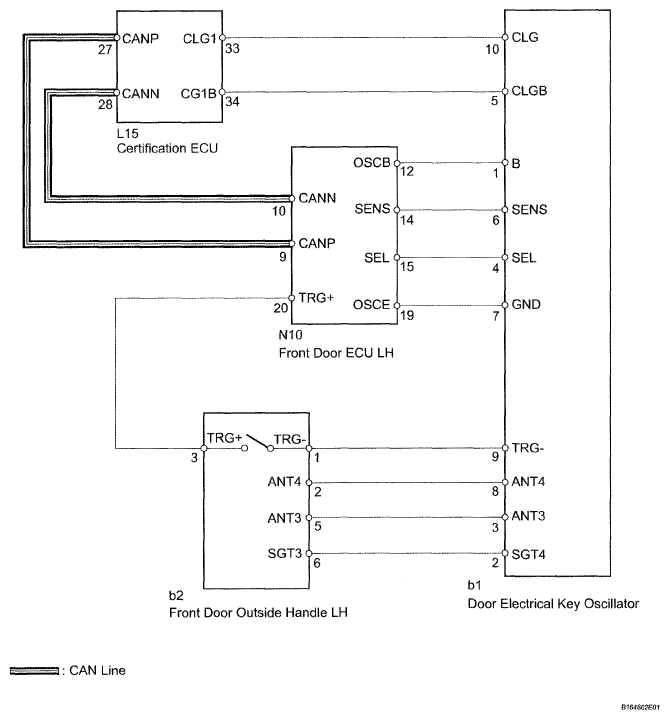

Fig 1: Driver Side Door Entry Lock And Unlock Functions - Wiring Diagram

G04951644

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
