Inspection Procedure

1. Disconnect the R19 display connector.
   Fig 1: Identifying Television Display Assembly Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   R19-16 (GND)-Body ground	Always	Below 1 Ω

3. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Switch Condition	Specified Condition
   R19-14 (+B) - Body ground	Always	11 to 14 V
   R19-29(ACC)-Body ground	Engine switch on (ACC)	11 to 14 V

NG: Go to step 2

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (See  PROBLEM SYMPTOMS TABLE   )

1. Disconnect the R19 display connector.
2. Disconnect the R30 controller connector.

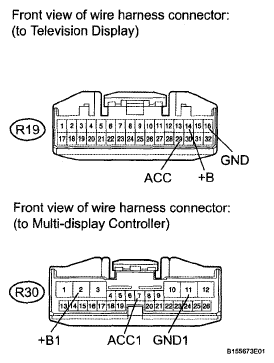

   Fig 2: Identifying Television Display And Multi-Display Controller Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   R19-14(+B)-R30-2(+B1)	Always	Below 1 Ω
   R19-29 (ACC) - R30-7 (ACC1)	Always	Below 1 Ω
   R19-16(GND)-R30-11 (GND1)	Always	Below 1 Ω
   R19-14 (+B) - Body ground	Always	10 kΩ or higher
   R19-29 (ACC) - Body ground	Always	10 kΩ or higher
   R19-16(GND) -Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE MULTI-DISPLAY CONTROLLER (See  REMOVAL   )
