Inspection Procedure

  1. CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY CONTROLLER - TELEVISION DISPLAY)
    1. Disconnect the R30 controller connector.
    2. Disconnect the R19 display connector.

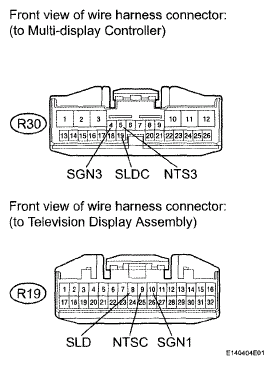

      Fig 1: Identifying Multi-Display Controller And Television Display Connector Terminal
      G04953958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      R30-5 (NTS3) - R19-9 (NTSC) Always Below 1 Ω
      R30-4(SGN3)-R19-10 (SGN1) Always Below 1 Ω
      R30-19(SLDC)-R19-8 (SLD) Always Below 1 Ω
      R30-5 (NTS3) - Body ground Always 10 kΩ or higher
      R30-4 (SGN3) - Body ground Always 10 kΩ or higher
      R30-19 (SLDC) - Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (See  PROBLEM SYMPTOMS TABLE   )
