Inspection Procedure

HINT:

First make sure the CAN communication system is operating normally.

1. INSPECT FUSE (RR MPX-B 2)
   1. Disconnect the RR MPX-B 2 fuse from the luggage room junction block.
   2. Measure the resistance of the fuse.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART



      Tester Connection	Condition	Specified Condition
      RR MPX-B 2 fuse	Always	Below 1 Ω

   NG: REPLACE FUSE

   OK: GO TO NEXT STEP

2. CHECK HARNESS AND CONNECTOR (REAR POWER SEAT MODULE SWITCH BATTERY AND BODY GROUND)
   1. Disconnect the S15 or r2 module connector.

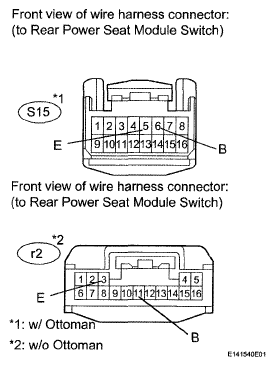

      Fig 1: Identifying Rear Power Seat Module Switch Battery And Body Ground Connector Terminal

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION



      Tester Connection	Condition	Specified Condition
      S15-5 (E)*1 or r2-3 (E)*2 - Body ground	Always	Below 1 Ω

   3. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION



      Tester Connection	Condition	Specified Condition
      S15-6 (B)-Body ground*1	Always	11 to 14 V
      r2-11 (B) - Body ground*2	Always	11 to 14 V

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (See  PROBLEM SYMPTOMS TABLE   )
