DTC B1492/92 Infrared Ray Sensor Communication Malfunction: Wiring Diagram

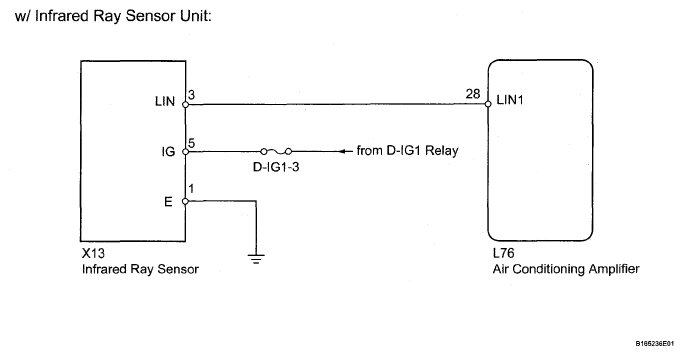

Fig 1: Infrared Ray Sensor Communication Malfunction - Wiring Diagram

G04946969

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
