DRIVER SIDE: Exploded View

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

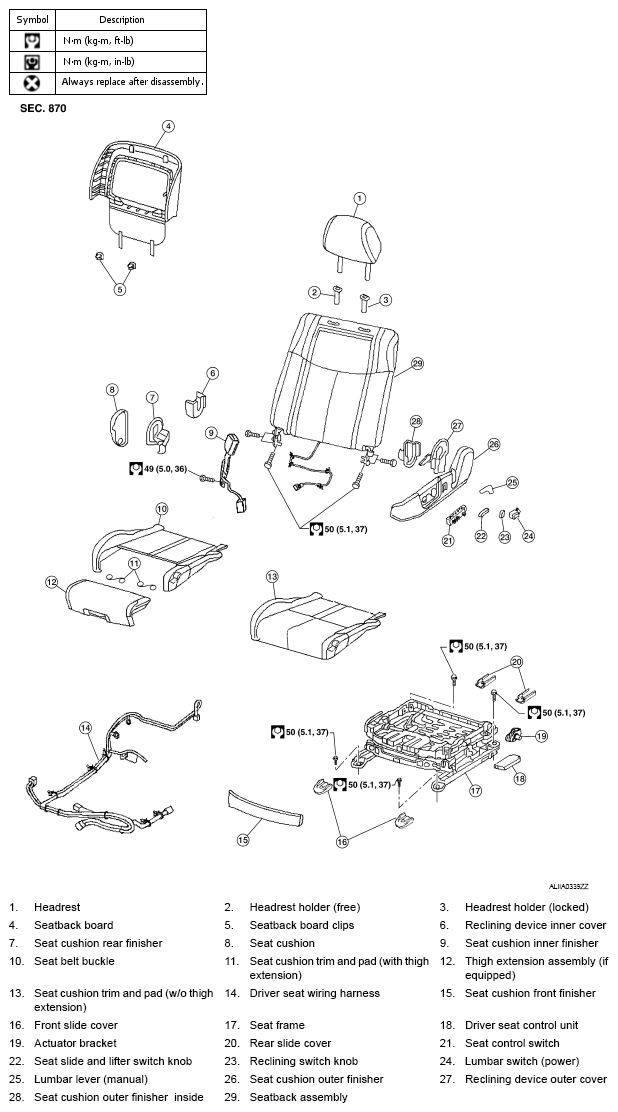

Fig 1: Exploded View Of Driver Side With Torque Specifications
G05876328Courtesy of NISSAN MOTOR CO., U.S.A.
