Removal and Installation: Removal

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the spiral cable. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the screws (A) and release the clips (B) to remove the steering angle sensor (1) from the spiral cable (2).

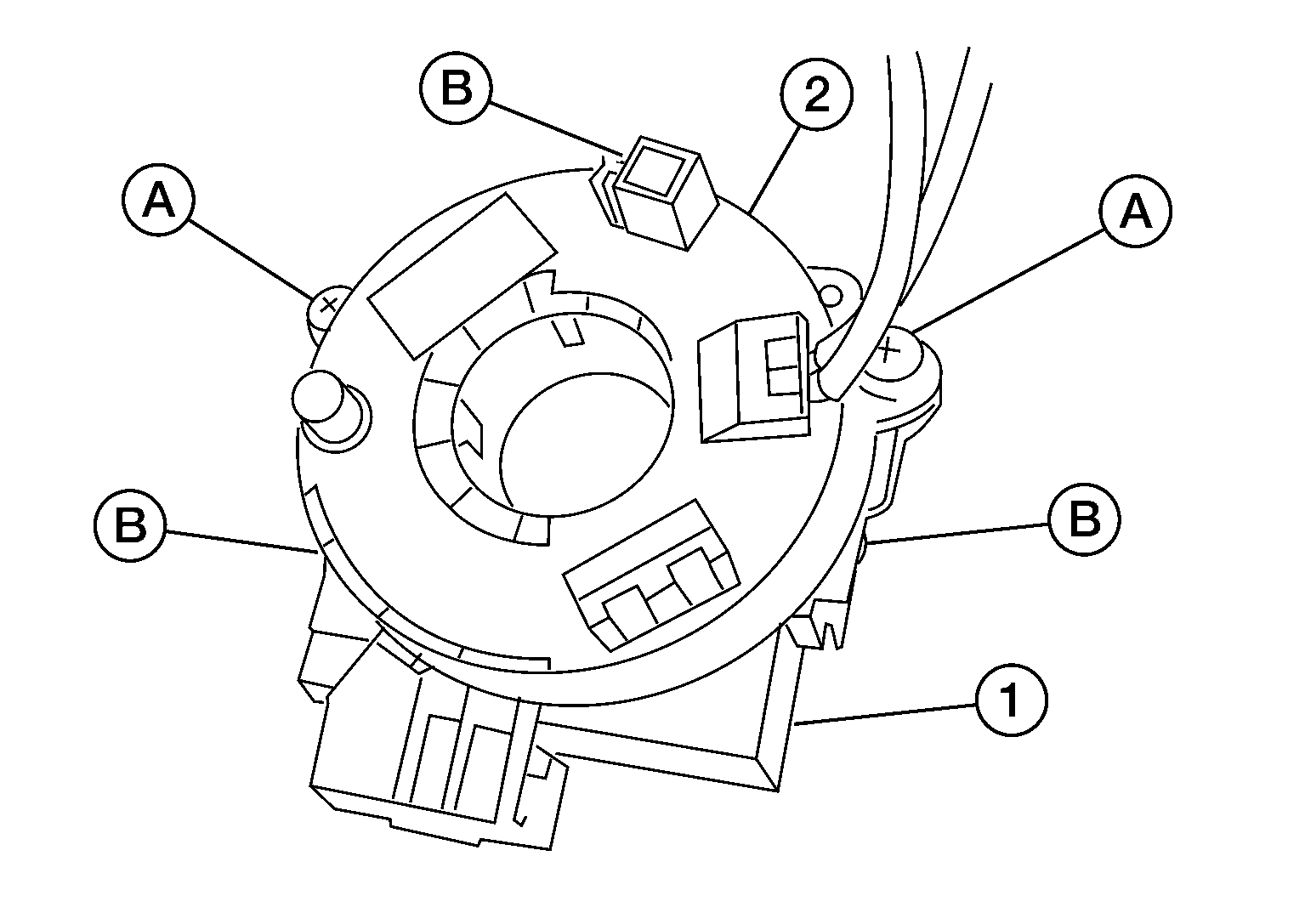

Fig 1: Identifying Steering Angle Sensor And Spiral Cable
G05690799Courtesy of NISSAN MOTOR CO., U.S.A.
