Ambient Temperature Sensor: Removal

  1. REMOVE COOL AIR INTAKE DUCT SEAL (See  REMOVAL  )
  2. REMOVE FRONT BUMPER ASSEMBLY (See  REMOVAL  )
  3. REMOVE AMBIENT TEMPERATURE SENSOR
    1. Disconnect the connector and detach the clamp.
    2. Remove the ambient temperature sensor.

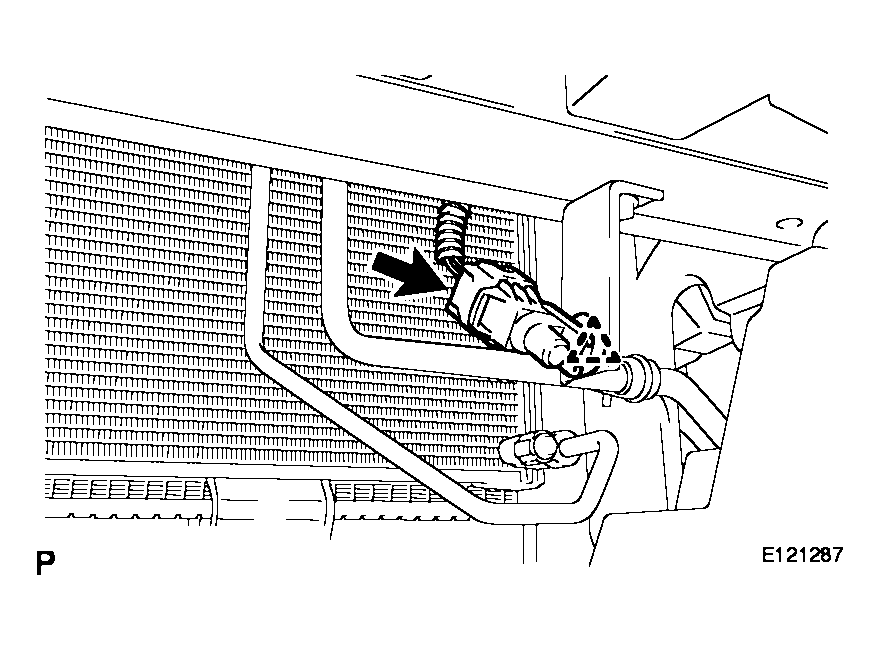

    Fig 1: Identifying Connector
    G04048514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
