Air Conditioning Unit: Disassembly

REMOVE AIR OUTLET CONTROL SERVO MOTOR
1. Disconnect the connector.
2. Remove the 3 screws and air outlet control servo motor.

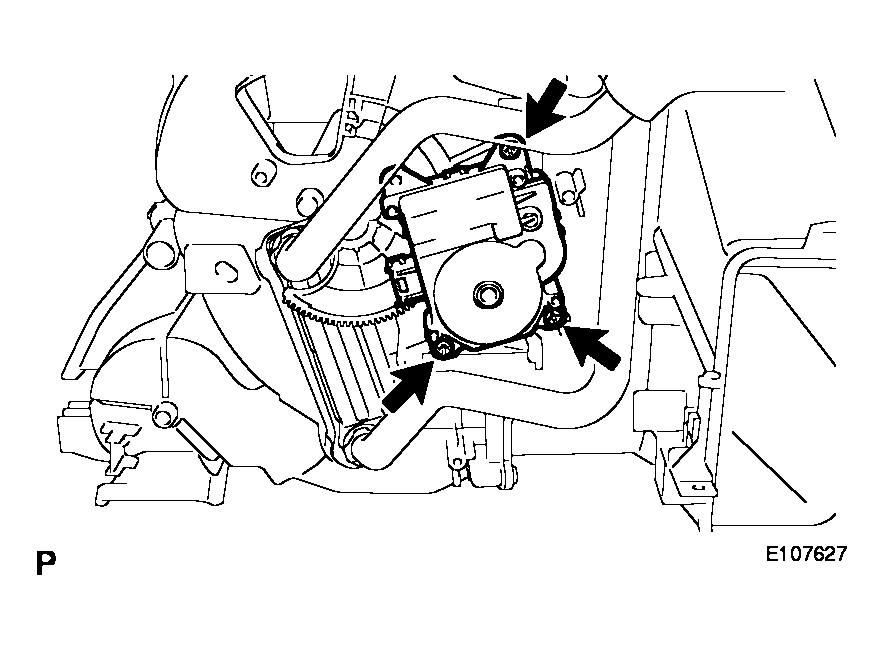

Fig 1: Identifying Screws And Air Outlet Control Servo Motor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR MIX CONTROL SERVO MOTOR
1. Remove the 4 clamps and connector, and disconnect the wire harness.

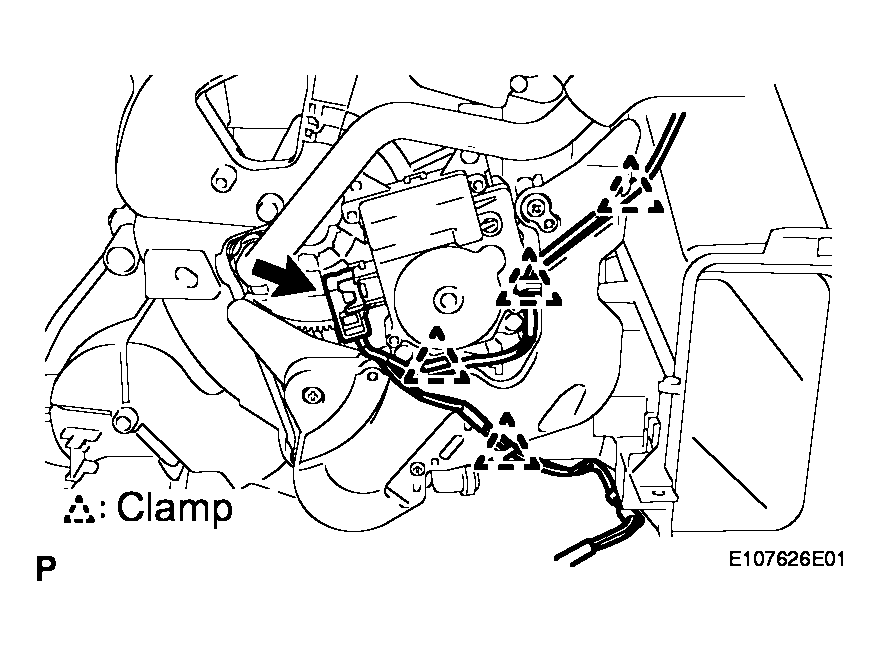

  Fig 2: Identifying Wire Harness Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 3 screws and heater piping cover.

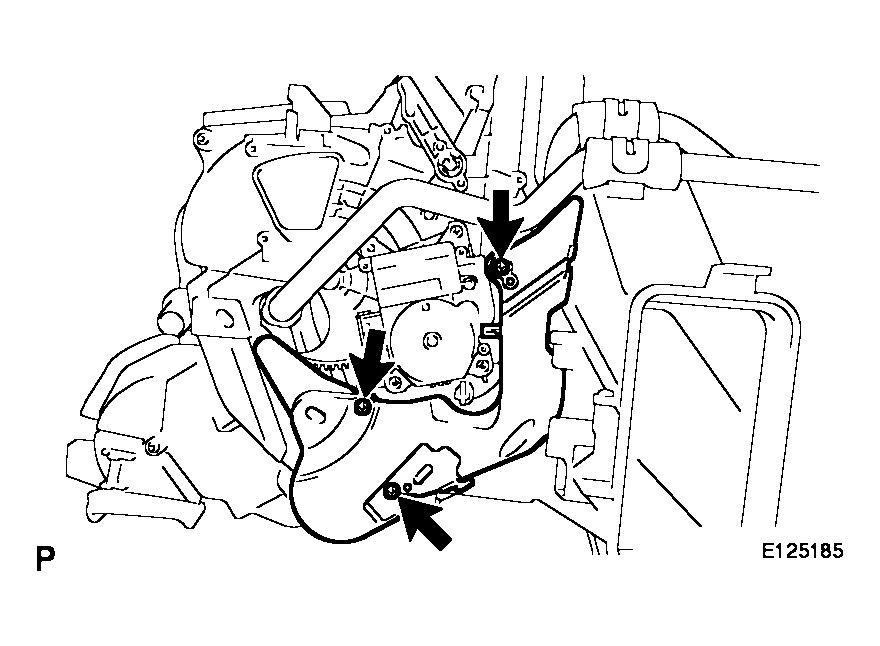

  Fig 3: Identifying Screws And Heater Piping Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

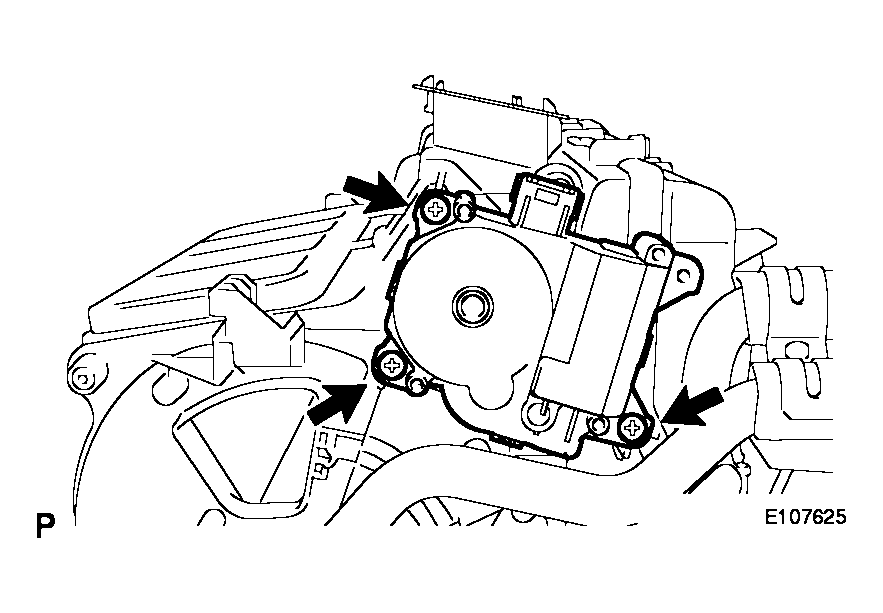

3. Remove the 3 screws and air mix control servo motor.
Fig 4: Identifying Screws And Air Mix Control Servo Motor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COOLER EXPANSION VALVE
1. Remove the packing from the air conditioning tube assembly.

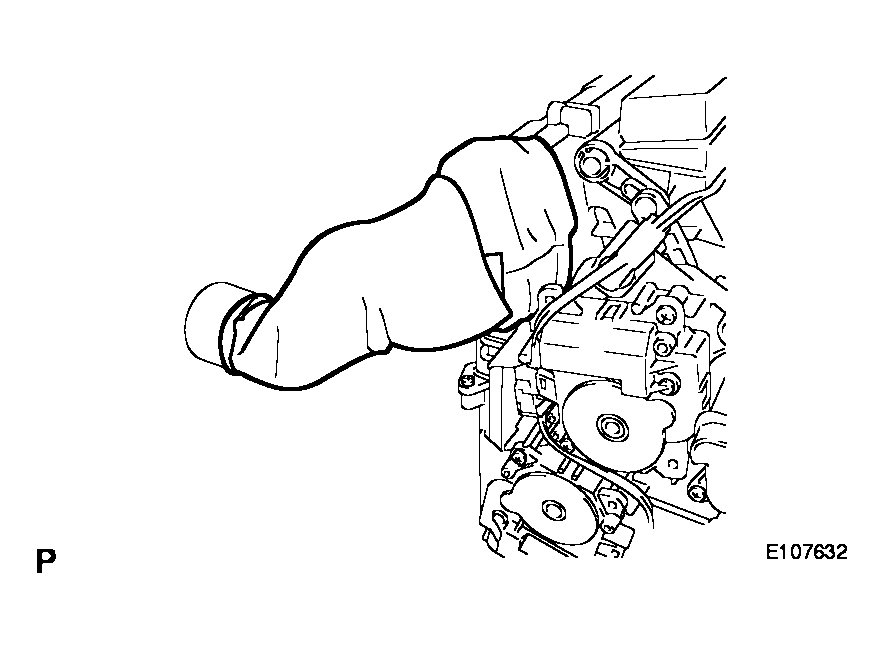

  Fig 5: Identifying Packing For Air Conditioning Tube Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

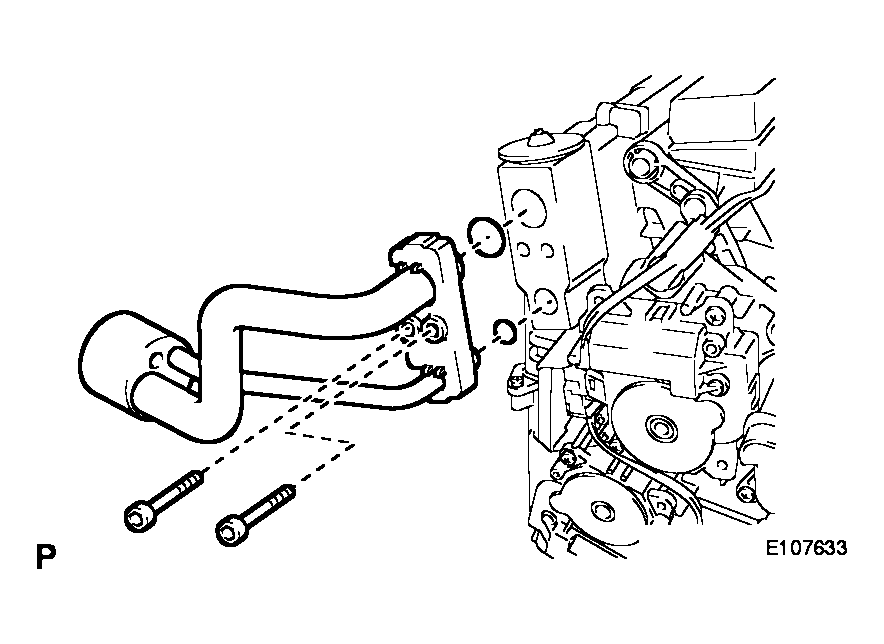

2. Using a hexagon wrench 4 mm, remove the 2 hexagon bolts and air conditioning tube assembly.
3. Remove the 2 O-rings from the air conditioning tube assembly.

  Fig 6: Identifying O-Rings For Air Conditioning Tube Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

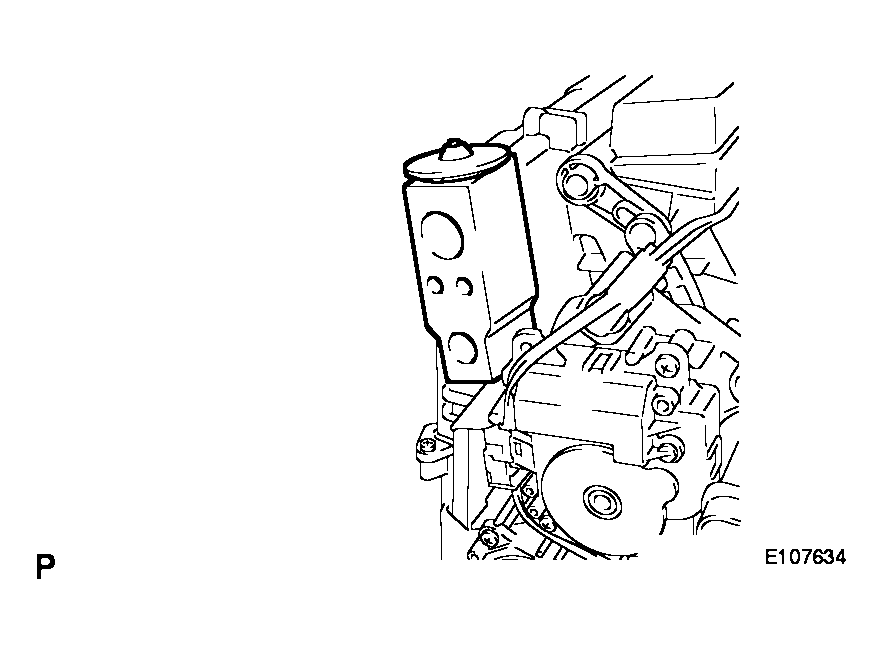

4. Remove the cooler expansion valve from the No. 1 cooler evaporator sub-assembly.
Fig 7: Identifying Cooler Expansion Valve
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR CONDITIONING HARNESS ASSEMBLY
1. Remove the 2 connectors and 5 clamps, and then disconnect the wire harness.
2. Remove the air conditioning harness assembly as shown in the illustration.

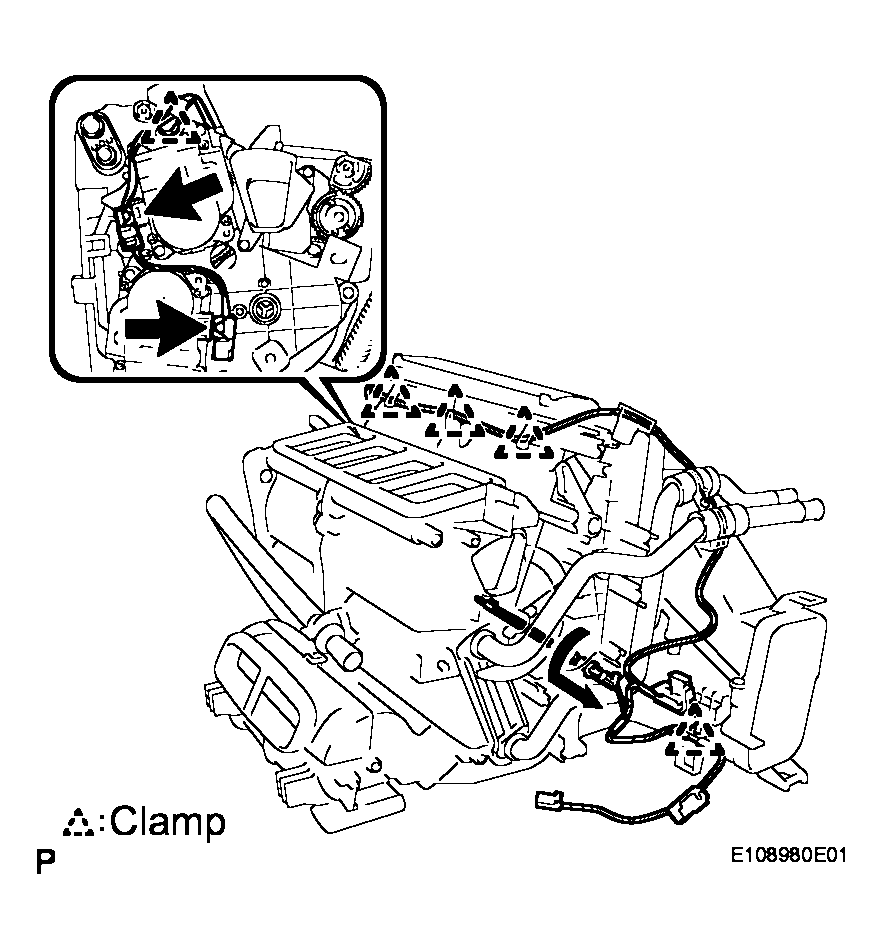

Fig 8: Identifying Wire Harness Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR OUTLET CONTROL SERVO MOTOR
1. Remove the 2 screws and the air duct.

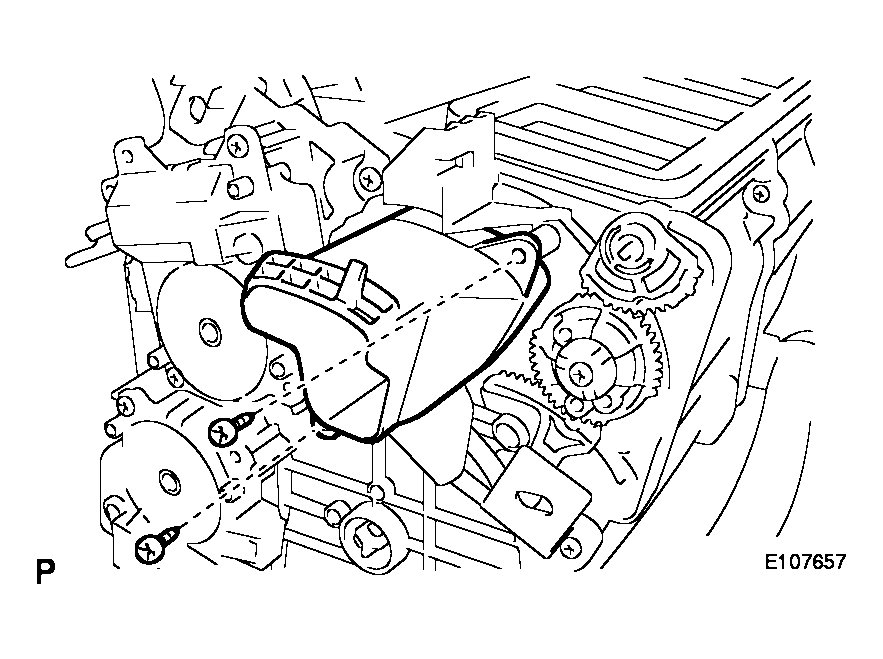

  Fig 9: Identifying Air Outlet Control Servo Motor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

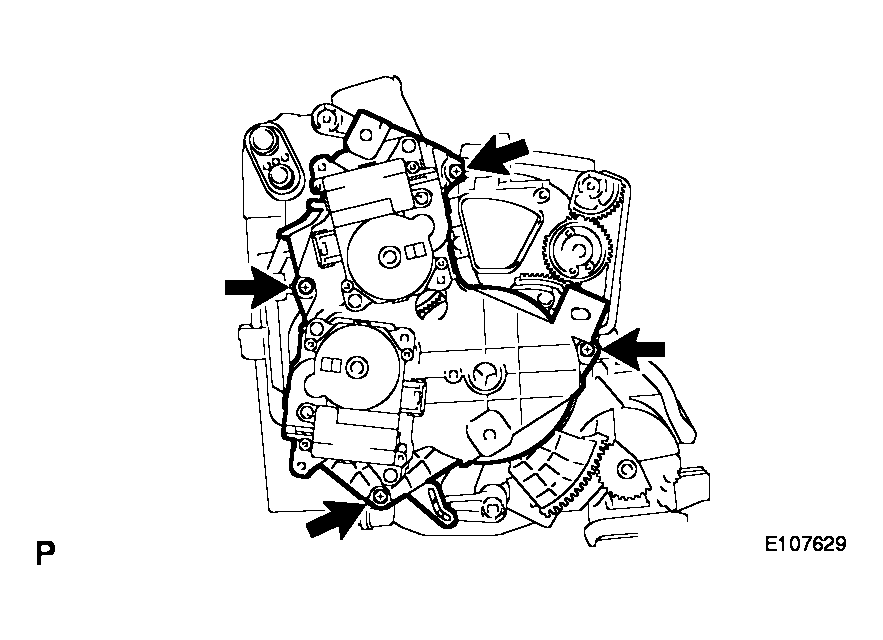

2. Remove the 4 screws and the servo motor plate.

  Fig 10: Identifying Screws And Servo Motor Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 screws.
4. Release the claw and remove the air outlet control servo motor from the servo motor plate.

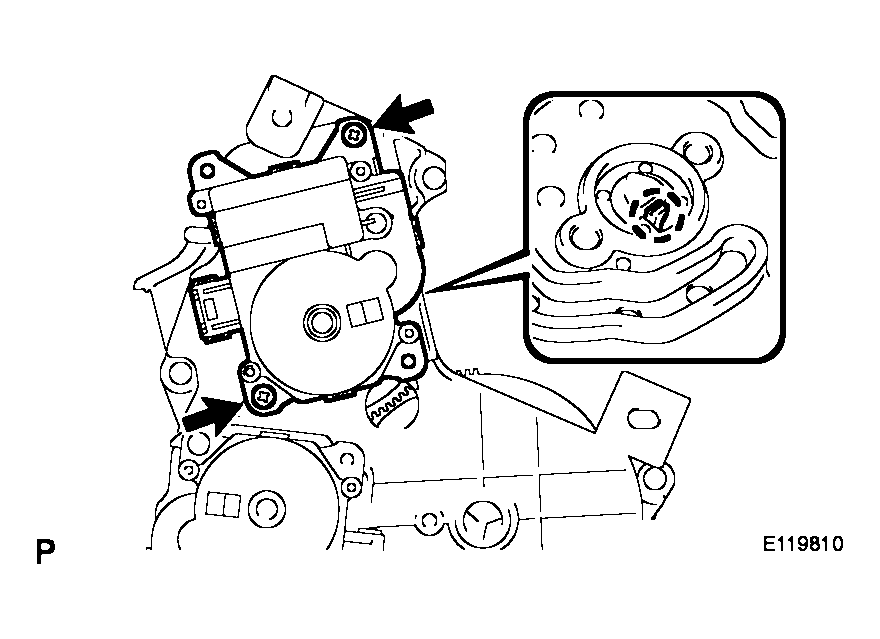

Fig 11: Identifying Air Outlet Control Servo Motor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

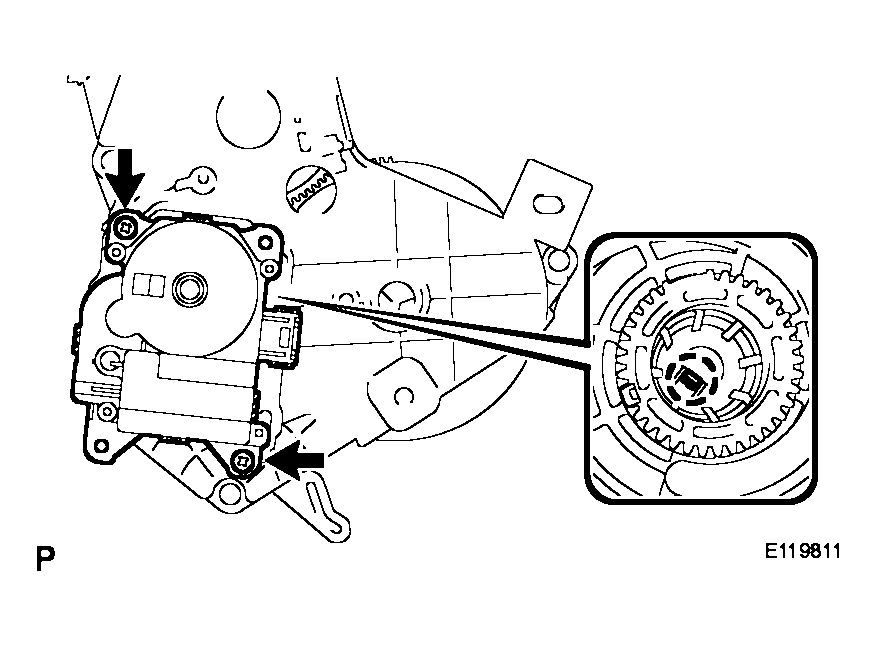

REMOVE AIR MIX CONTROL SERVO MOTOR
1. Remove the 2 screws.
2. Release the claw and remove the air mix control servo motor from the servo motor plate.
Fig 12: Identifying Air Mix Control Servo Motor And Servo Motor Plate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

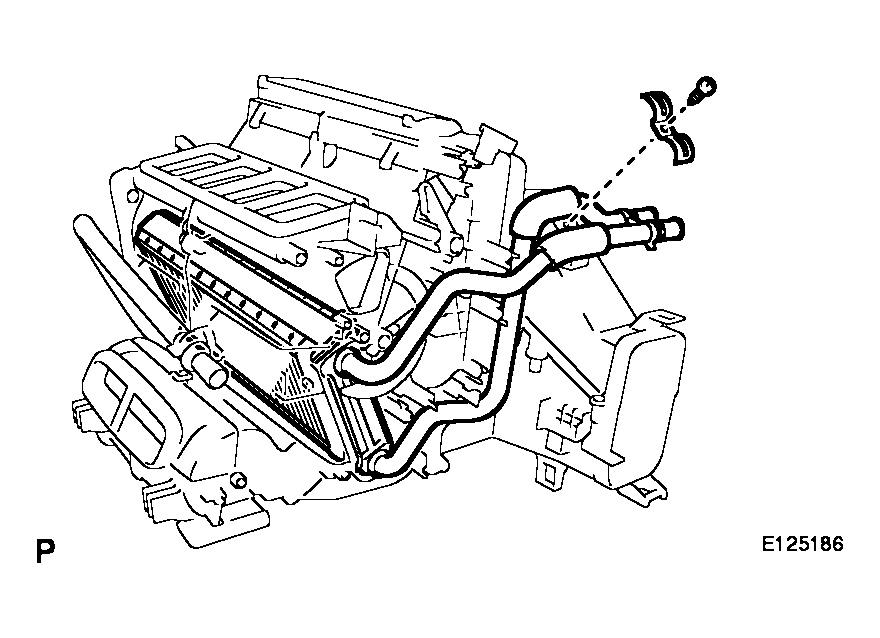

REMOVE HEATER RADIATOR UNIT SUB-ASSEMBLY
1. Remove the screw and clamp.
2. Remove the heater radiator unit sub-assembly.
Fig 13: Identifying Heater Radiator Unit Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

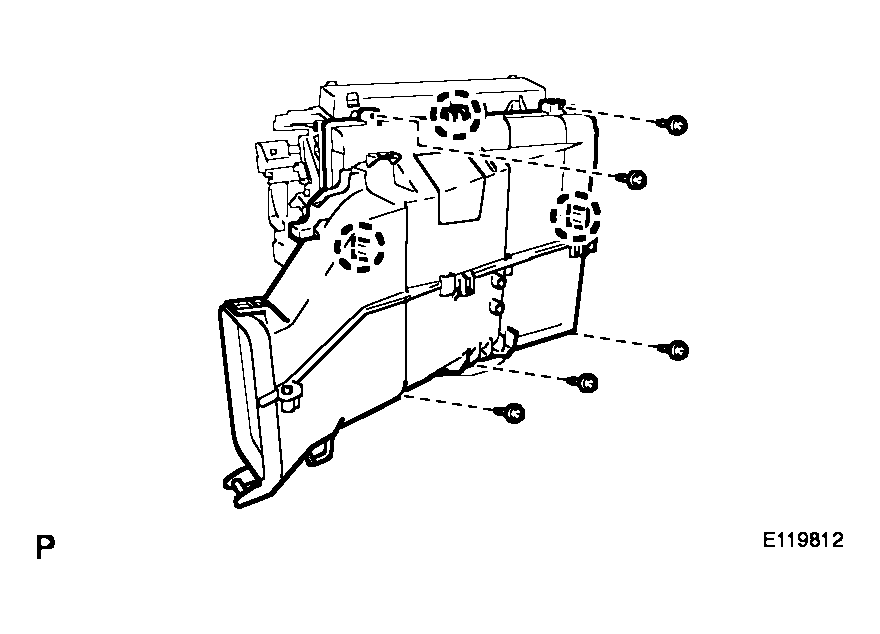

REMOVE NO. 1 COOLER EVAPORATOR SUBASSEMBLY
1. Remove the 5 screws.
2. Release the 3 claws and remove the air duct.

  Fig 14: Identifying Air Duct
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the No. 1 cooler evaporator sub-assembly from the air duct.
4. Remove the 2 O-rings from the No. 1 cooler evaporator sub-assembly.

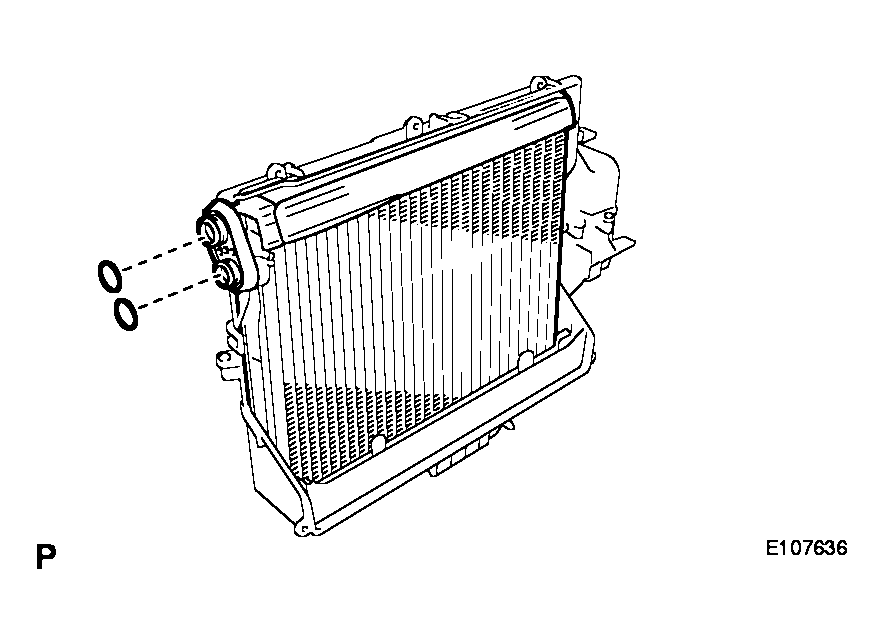

Fig 15: Identifying O-Rings For No. 1 Cooler Evaporator Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
