Air Conditioning Amplifier: Components

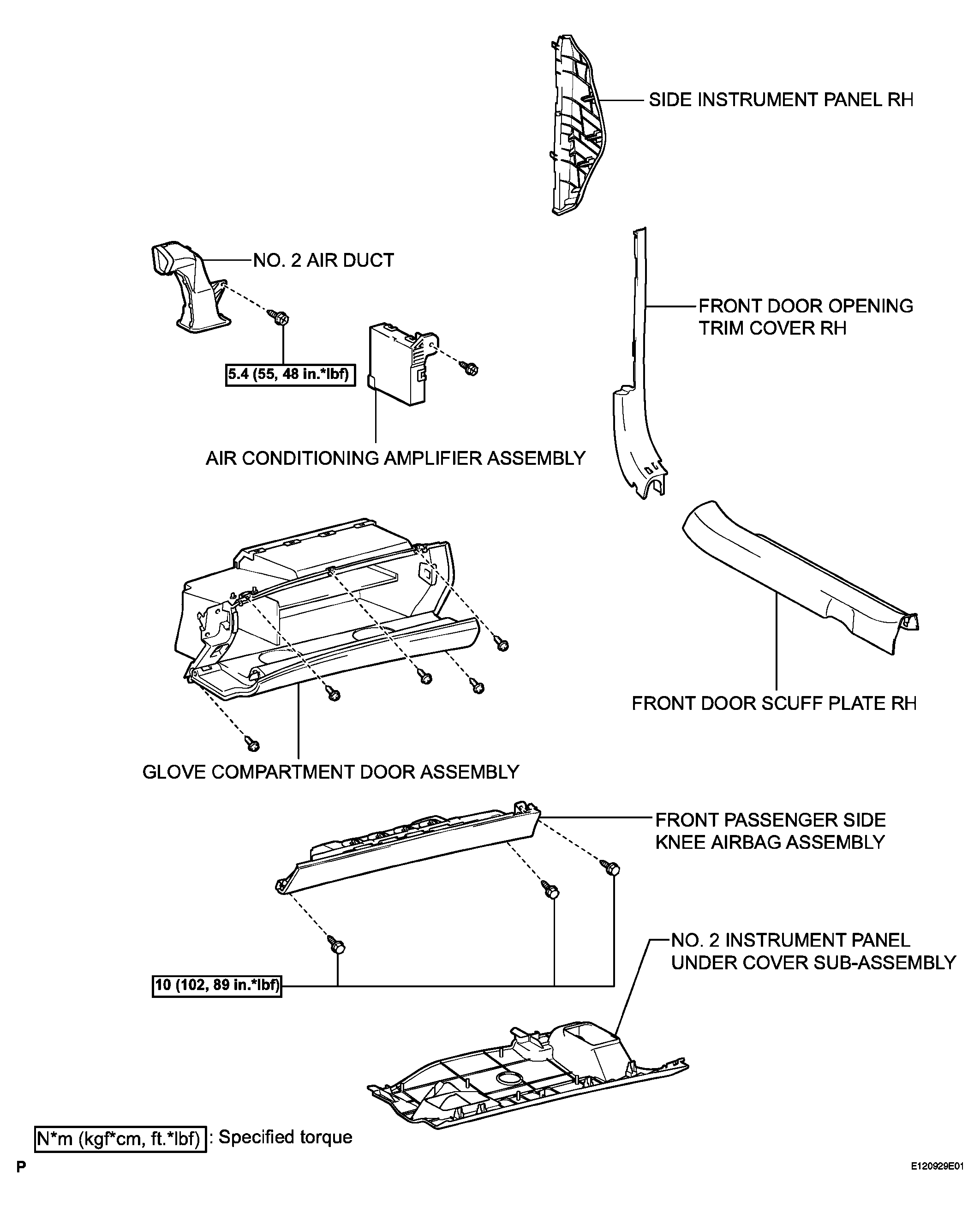

Fig 1: Air Conditioning Amplifier Replacement Components With Torque Specifications

G04048544

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
