Inspection Procedure
- CHECK ECM (FRP VOLTAGE)
- Measure the voltage according to the value (s) in the table below.
Standard voltage
VOLTAGE SPECIFICATIONTester Connection Condition Specified Condition FPR (A5-15) - E1 (E4-7) STA signal ON 9 to 14 V FPR (A5-15) - E1 (E4-7) STA signal OFF 0 to 3 V
NG: REPLACE ECM
OK: Go to next step
- Measure the voltage according to the value (s) in the table below.
- INSPECT RELAY (Marking: F/PMP)
- Remove the F/PMP relay from the engine room J/B and R/B No. 2.
- Measure the resistance according to the value (s) in the table below.
Standard resistance
RESISTANCE SPECIFICATIONTester Connection Specified Condition 3 - 4 Below 1 Ω 3 - 4 10 kΩ or more (when battery voltage Is applied to terminals 1 and 2)
NG: REPLACE RELAY
OK: Go to next step

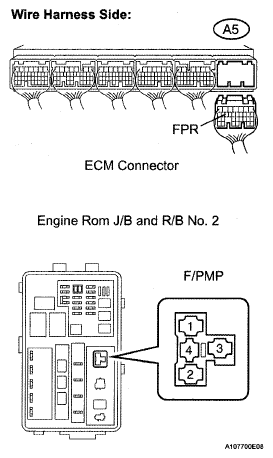

- CHECK HARNESS AND CONNECTOR (F/PMP RELAY - ECM)
- Remove the F/PMP relay from the engine room J/B and R/B No. 2.
- Disconnect the A5 ECM connector.
- Measure the resistance according to the value (s) in the table below.
Standard resistance
RESISTANCE SPECIFICATIONTester Connection Specified Condition F/PMP relay terminal 2 - A5-15 (FPR) Below 1 Ω F/PMP relay terminal 2 or A5-15 (FPR) - Body Ground 10 kΩ or higher
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE ECM
