Power Seat for Front Passenger's Seat with Memory: Notes

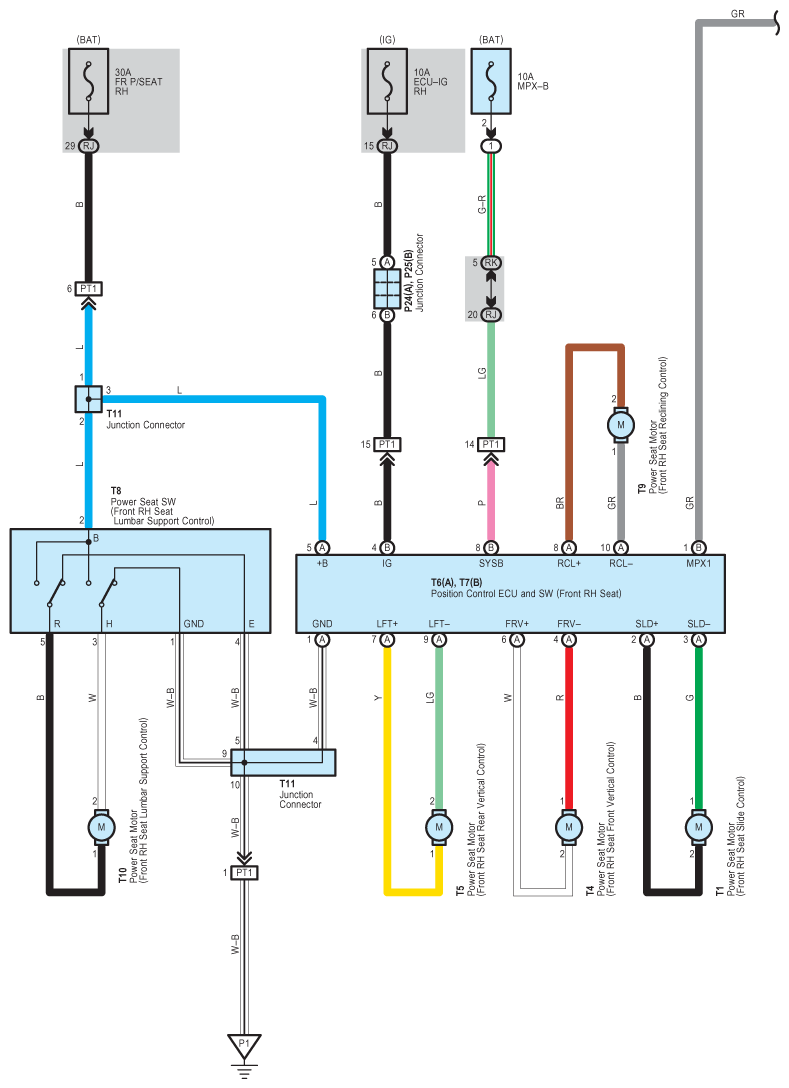

Fig 1: Power Seat For Front Passenger's Seat With Memory - Wiring Diagram (1 Of 4)
G08918623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

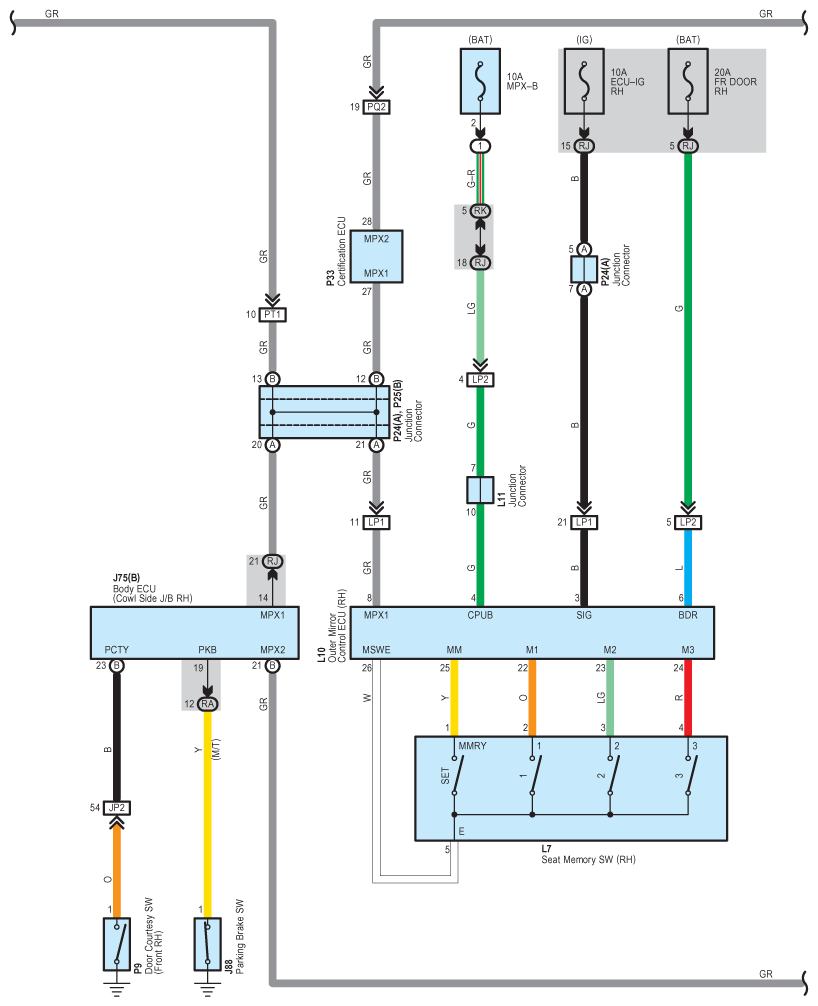

Fig 2: Power Seat For Front Passenger's Seat With Memory - Wiring Diagram (2 Of 4)
G08918624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

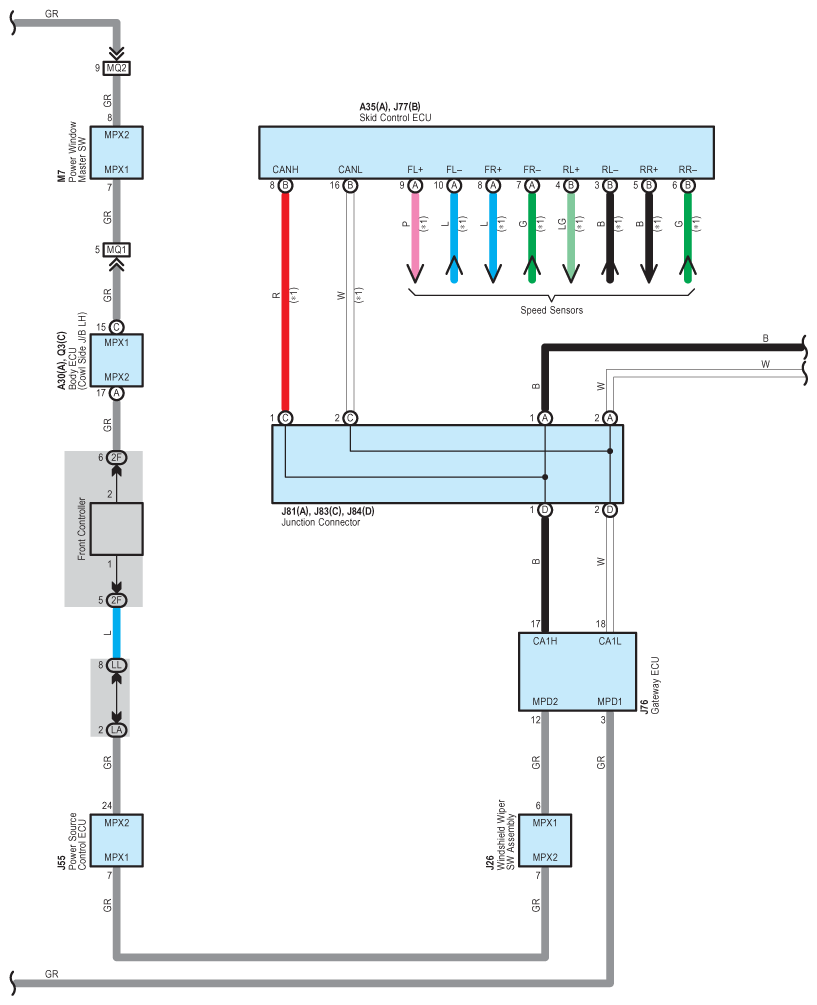

Fig 3: Power Seat For Front Passenger's Seat With Memory - Wiring Diagram (3 Of 4)
G08918625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Power Seat For Front Passenger's Seat With Memory - Wiring Diagram (4 Of 4)
G08918626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
