Climate Control Seat System does not Operate: Wiring Diagram

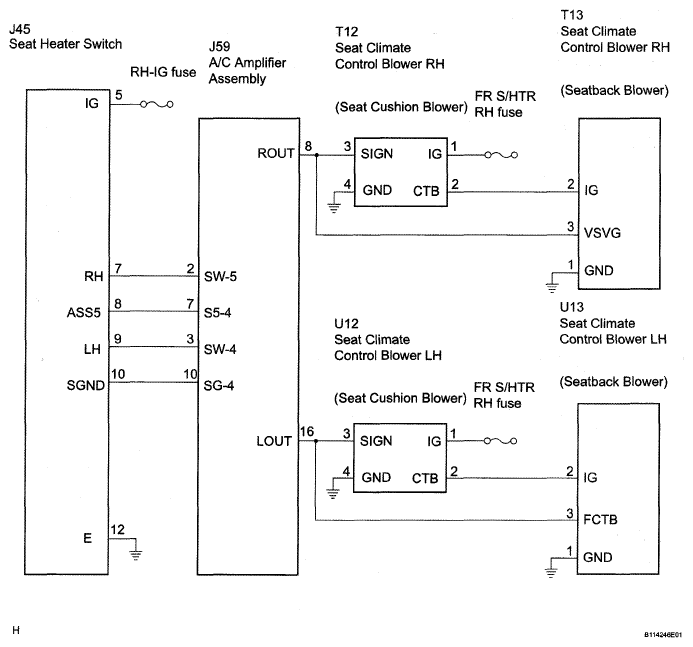

Fig 1: Climate Control Seat System Does Not Operate - Wiring Diagram

G05320899

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
