Room Oscillator Circuit: Wiring Diagram

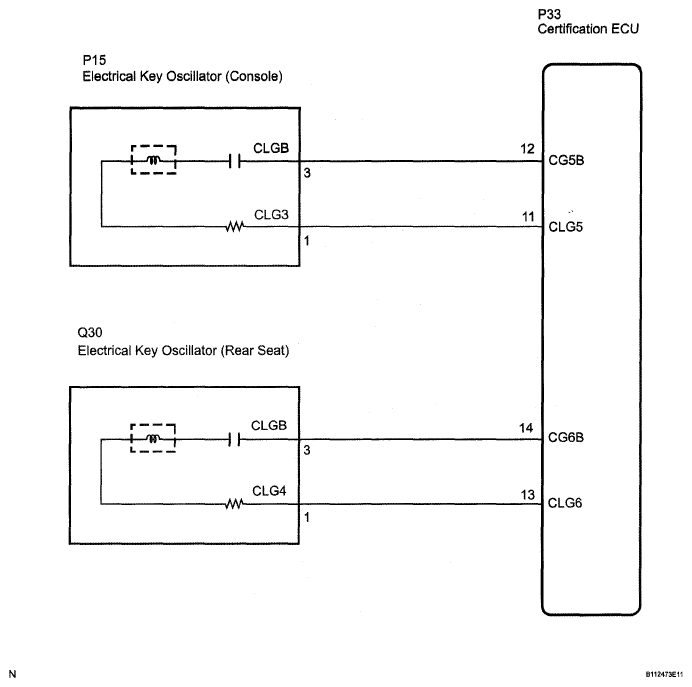

Fig 1: Room Oscillator Circuit - Wiring Diagram

G05320697

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
