Front Side Speaker: Components

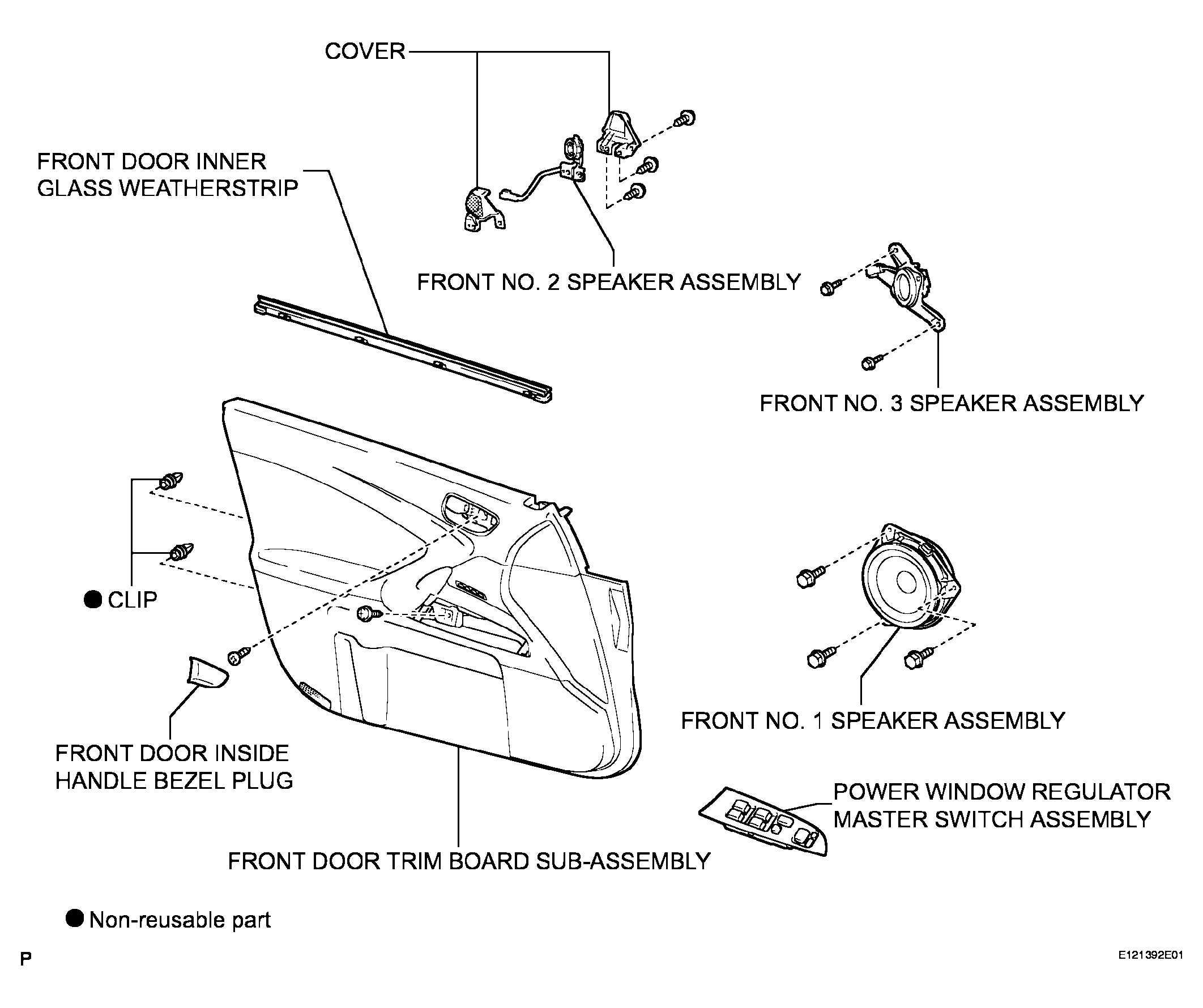

Fig 1: Identifying Front Side Speaker Components

G04050213

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
