TC and CG Terminal Circuit: Wiring Diagram

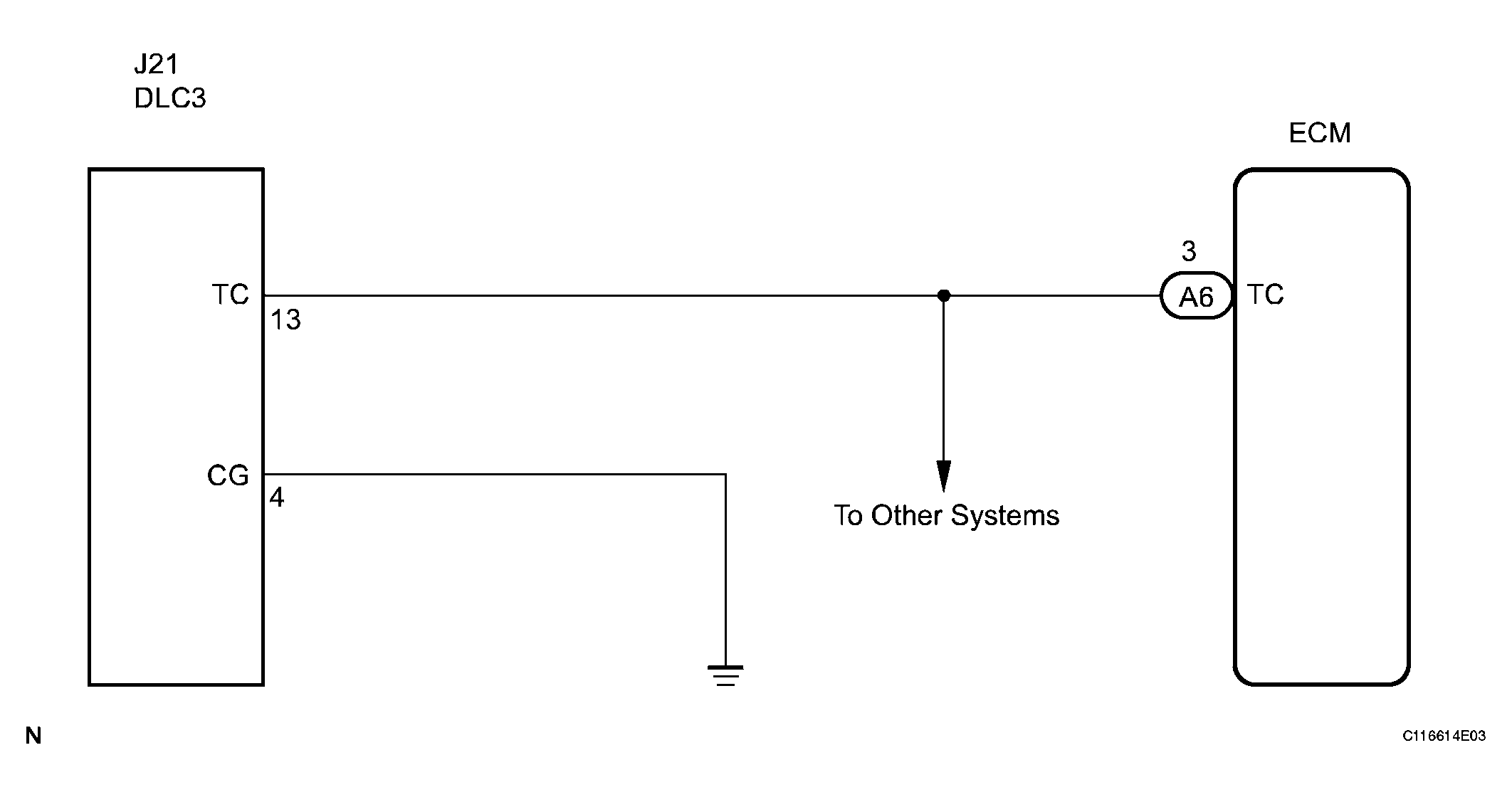

Fig 1: Identifying TC And CG Terminal Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. CHECK WIRE HARNESS (TERMINAL TC of DLC3 - ECM)
   1. Disconnect the A6 connector from the ECM.
   2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION AND SPECIFIED CONDITION CHART



   Tester Connection	Condition	Specified Condition
   A6-3 (TC) - J21-13 (TC)	Always	Below 1Ω

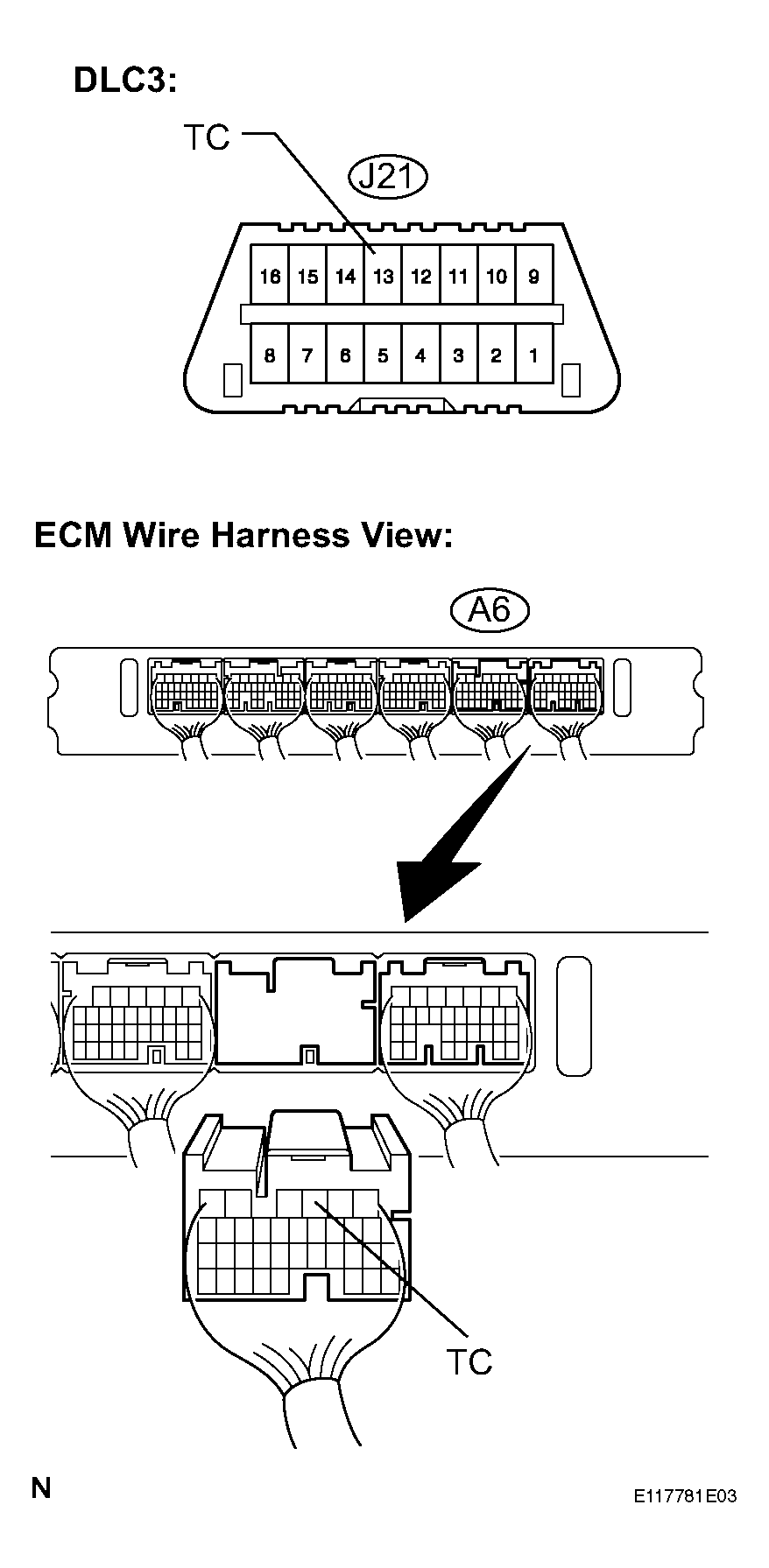

   Fig 2: Disconnecting A6 Connector From ECM

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG : REPAIR OR REPLACE HARNESS OR CONNECTOR (DLC3 - ECM)

   OK : Go To Next Step

2. CHECK WIRE HARNESS (TERMINAL CG of DLC3 - BODY GROUND)
   1. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION AND SPECIFIED CONDITION CHART



   Tester connection	Condition	Specified condition
   J21-4 (CG) - Body ground	Always	Below 1Ω

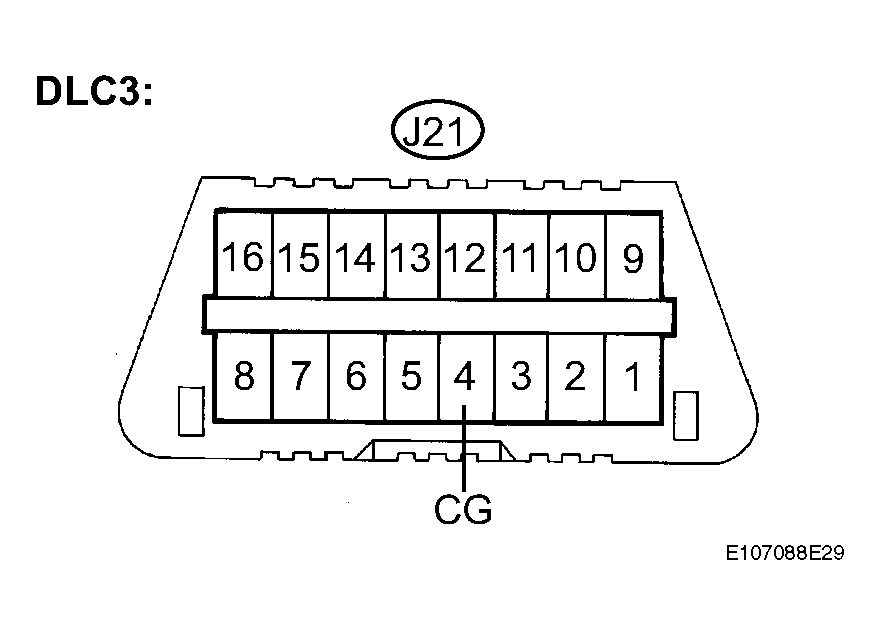

   Fig 3: Identifying Terminal CG Of DLC3

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG : REPAIR OR REPLACE HARNESS OR CONNECTOR (DLC3 - BODY GROUND)

   OK : Go To Next Step

3. CHECK WIRE HARNESS (TERMINAL TC of DLC3 - BODY GROUND)

1. Measure the resistance according to the value(s) in the table below.

Standard resistance

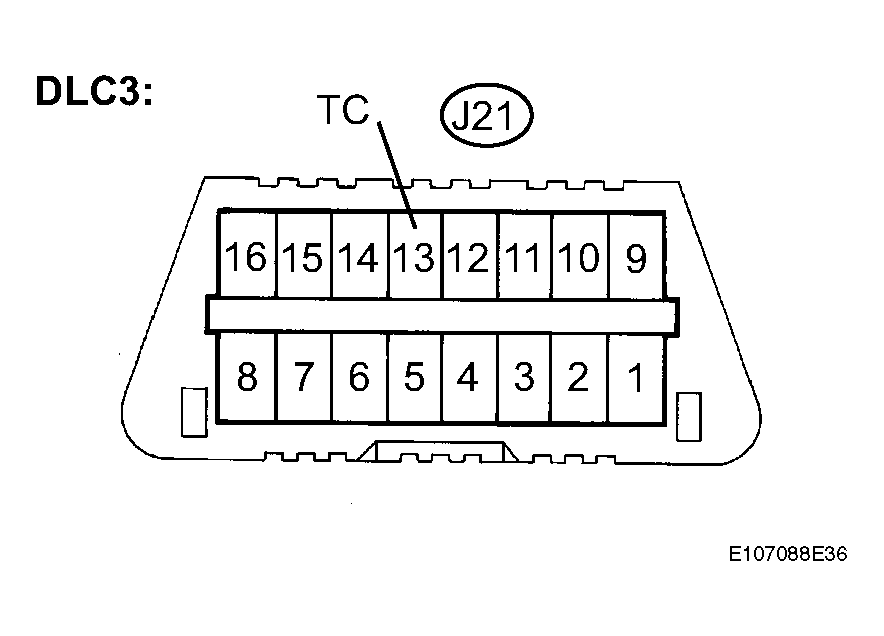

Fig 4: Checking Wire Harness (Terminal TC Of DLC3 - Body Ground)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR OR EACH ECU

OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
