Inspection Procedure

Fig 1: Identifying D1 Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the transfer indicator switch No. 1 connector.
2. Measure the resistance according to the value (s) in the table below.

Standard resistance

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to Next Step

Fig 2: Identifying Transfer Indicator Switch No. 1 (L4 Position Switch)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the transfer indicator switch No. 1.
2. Measure the resistance according to the value (s) in the table below.

Standard resistance

NG: REPLACE TRANSFER INDICATOR SWITCH NO. 1

OK: Go to Next Step

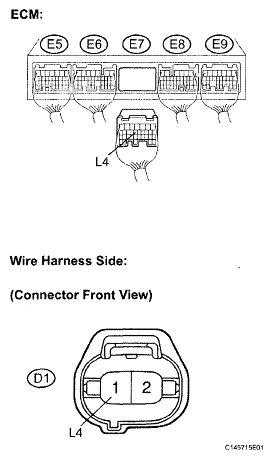

Fig 3: Identifying Harness & Connector (Transfer Indicator Switch - ECM)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the connector from the ECM.
2. Measure the resistance according to the value (s) in the table below.

   Standard resistance (Check for open)

   TESTER CONNECTION SPECIFIED CONDITION TABLE



   Tester Connection	Specified Condition
   E7-13 (L4) - D1-1 (L4)	Below 1 Ω

3. Measure the resistance according to the value (s) in the table below.

Standard resistance (check for short)

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE ECM
