VSC OFF Indicator Light Does Not Come ON: Wiring Diagram

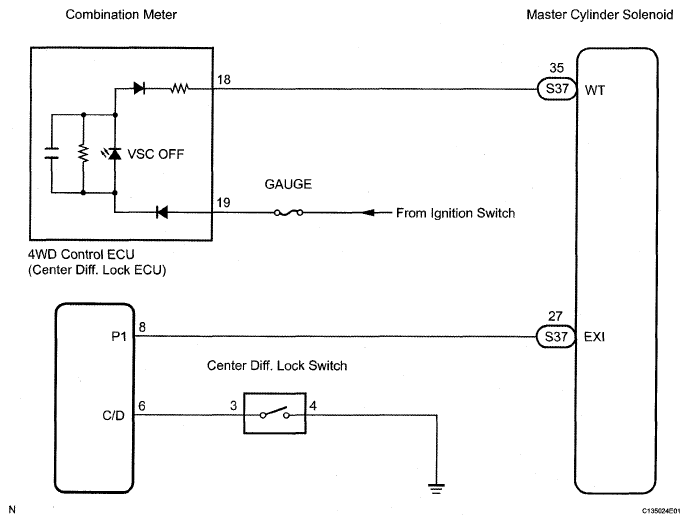

Fig 1: Identifying VSC Off Indicator Light & Combination Meter Wiring Diagram

G05262780

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
