Millimeter Wave Radar Sensor: Components

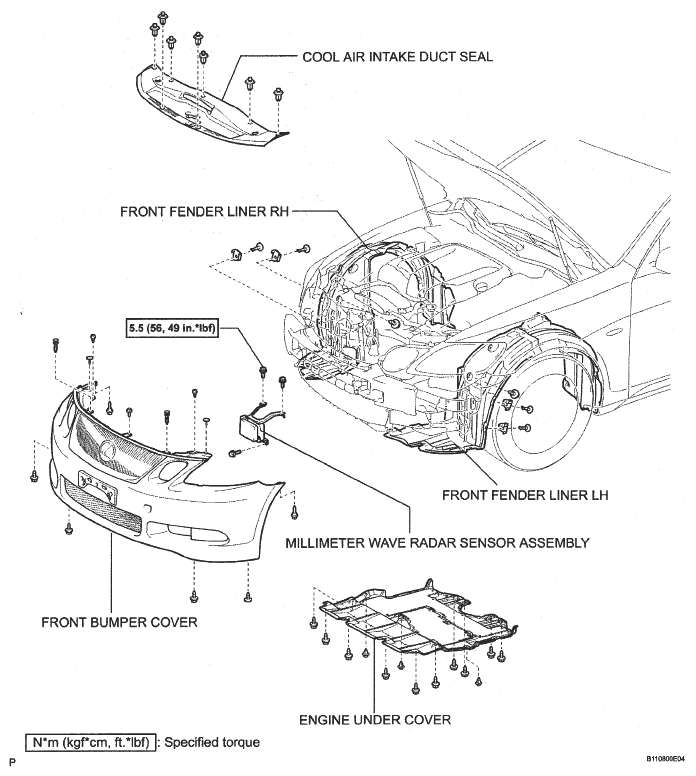

Fig 1: Millimeter Wave Radar Sensor Component With Torque Specification

G05306757

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
