Home >> Lexus >> 2007 >> GS 450h >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Headlights >> Lighting >> Height Control Sensor >> Components

Height Control Sensor: Components

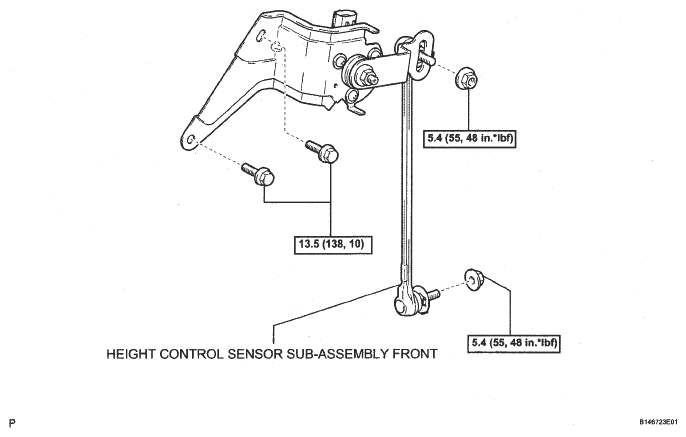

Fig 1: Height Control Sensor Replacement Components With Torque Specifications (1 Of 2)
G05315757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

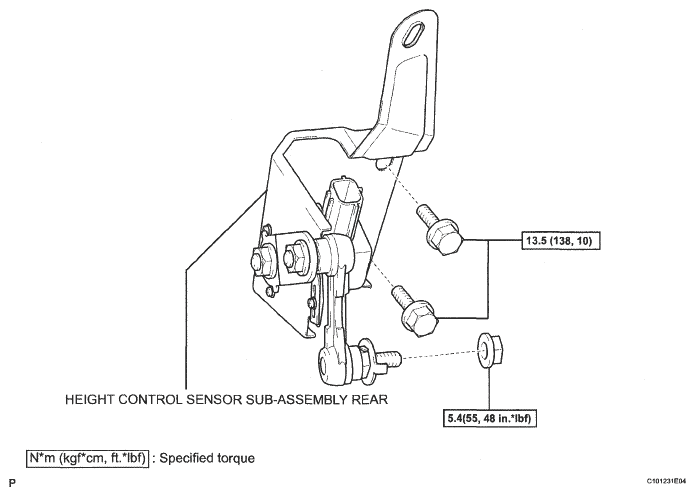

Fig 2: Height Control Sensor Replacement Components With Torque Specifications (2 Of 2)
G05315758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
