Parts Location

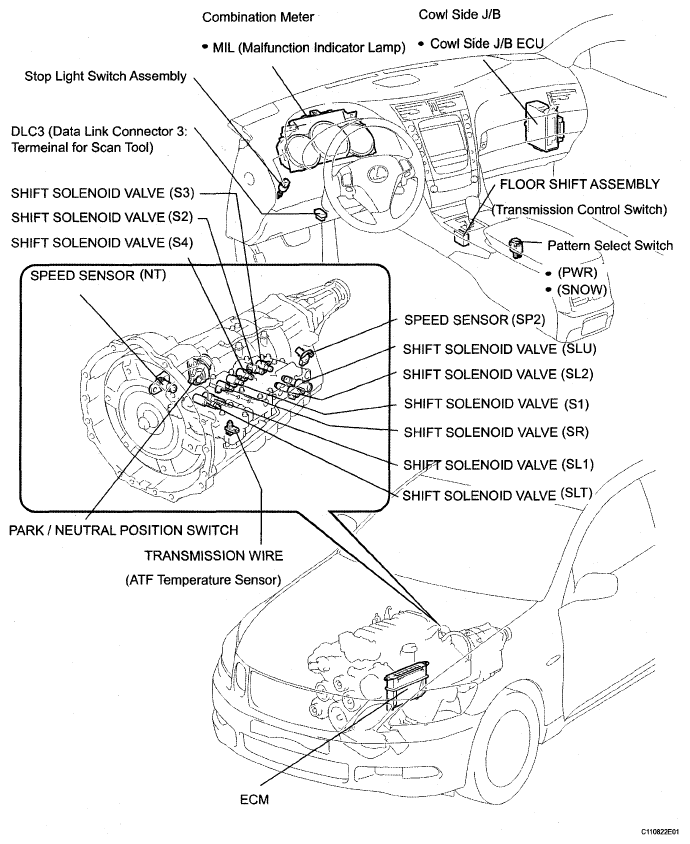

Fig 1: Identifying Electronic Controlled Automatic Transmission System Components Location

G05295182

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
