Power Steering Ecu: Components

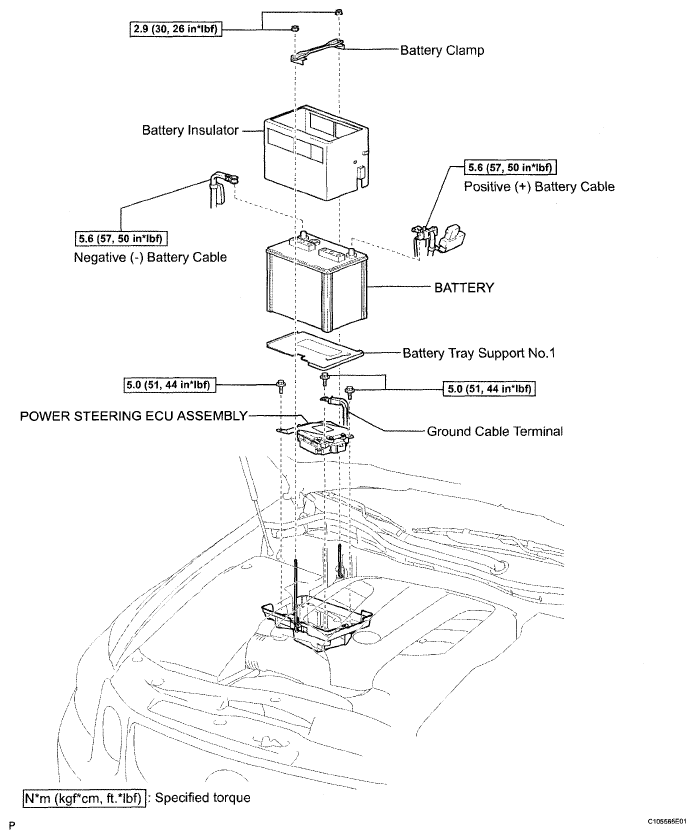

Fig 1: Power Steering ECU Replacement Components With Torque Specifications

G05297700

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
