Home >> Lexus >> 2007 >> GS 430 >> Repair and Diagnosis >> Engine Performance >> Engine Control System (3UZ-FE) >> Accelerator Pedal >> Components

Accelerator Pedal: Components

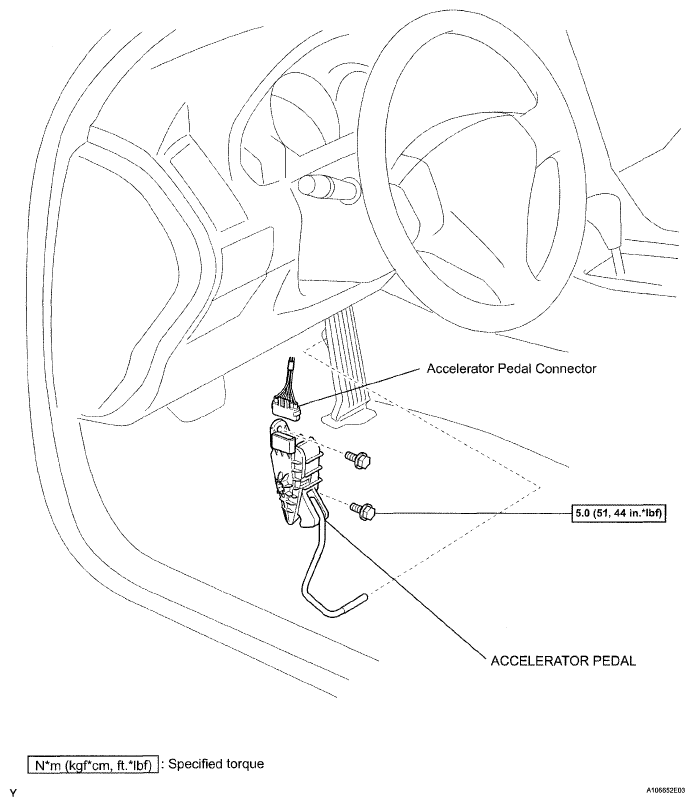

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications

G05285822

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
