DTC C1231/31 Steering Angle Sensor Circuit Malfunction: Wiring Diagram

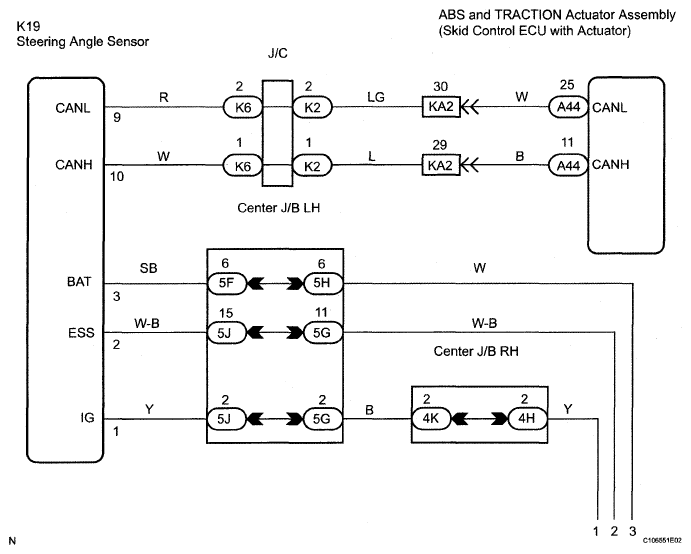

Fig 1: Steering Angle Sensor Circuit Malfunction - Wiring Diagram (1 Of 2)
G05296930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

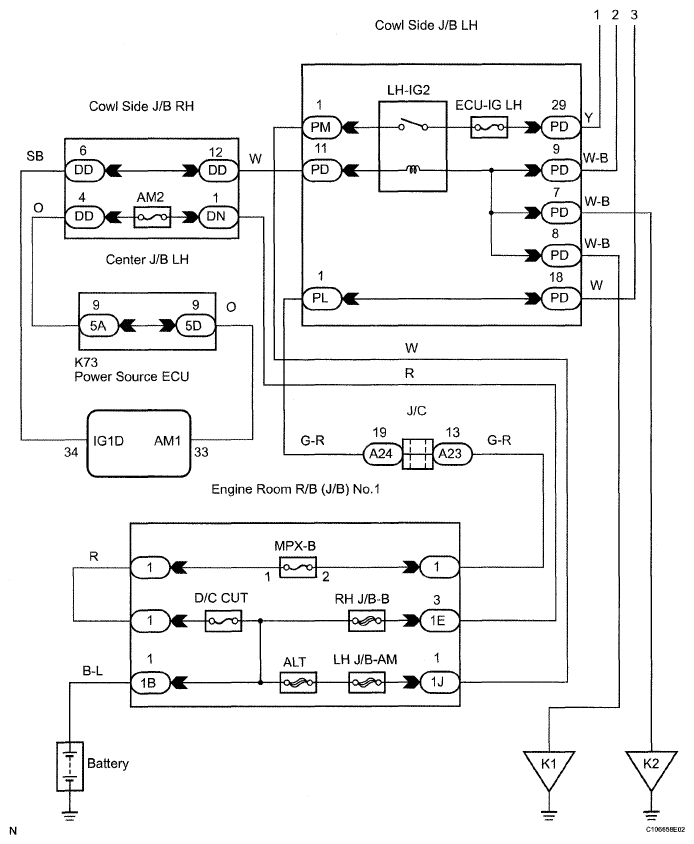

Fig 2: Steering Angle Sensor Circuit Malfunction - Wiring Diagram (2 Of 2)
G05296931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
