Ultrasonic Sensor: Components

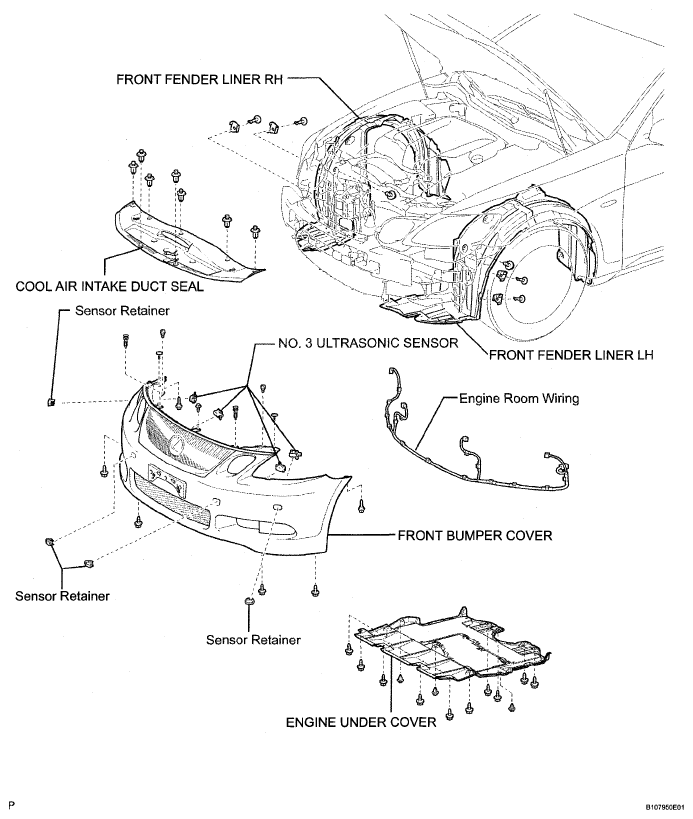

Fig 1: Identifying Ultrasonic Sensor Components (1 Of 2)
G05300001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

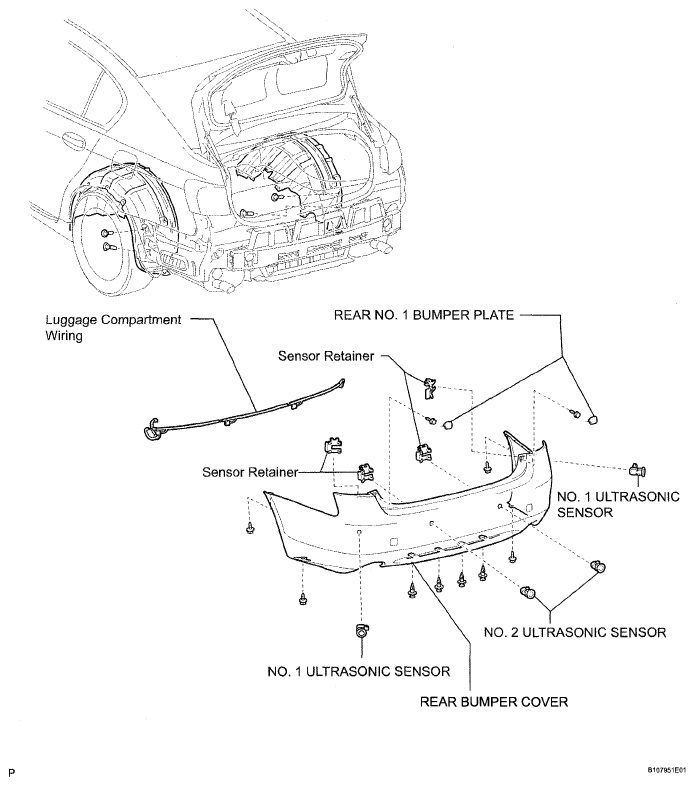

Fig 2: Identifying Ultrasonic Sensor Components (2 Of 2)
G05300002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
