Home >> Lexus >> 2007 >> GS 430 >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Navigation >> Navigation Ecu >> Components

Navigation Ecu: Components

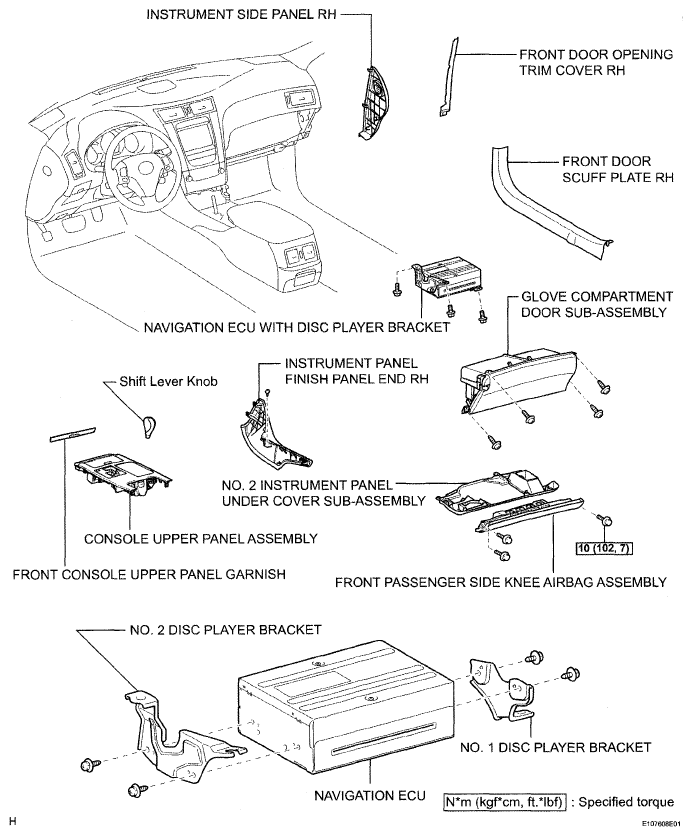

Fig 1: Navigation ECU Replacement Components With Torque Specifications

G05299897

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
