Microphone Circuit between Overhead Junction Block and Multi-display: Wiring Diagram

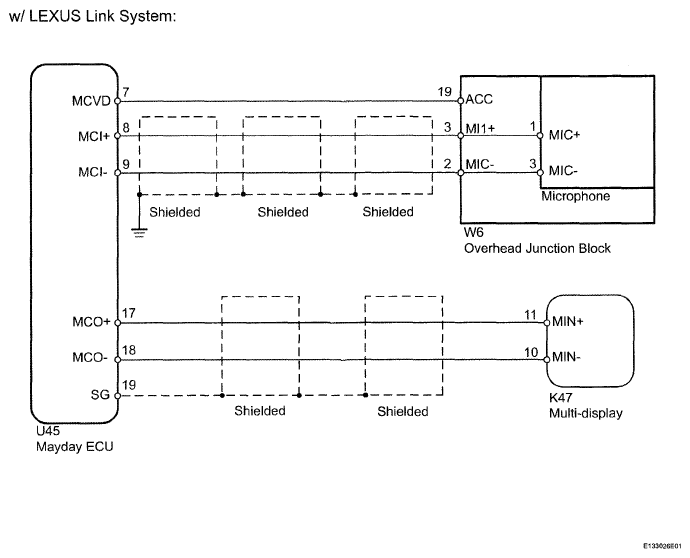

Fig 1: Mayday ECU - Wiring Diagram (W/ LEXUS Link System)
G05299556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Mayday ECU - Wiring Diagram (W/O LEXUS Link System)
G05299557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
