U660E Shift Flare Concerns (TC005-07)
Publication date: 2007-07-24Reference number: TC005-07
Supersedes refnos: TC001-07, TC004-06
U660E SHIFT FLARE CONCERNS
TECHNICAL SERVICE BULLETIN
Reference Number(s): TC005-07, Date of Issue:
July 24, 2007
Superceded Bulletin(s): TC005-07, Date of Issue:
May 17, 2007, June 26, 2007, TC001-07, Date of Issue:
January 19, 2007
| Models: | 2007 ES 350 |
| Section: | TRANSMISSION & CLUTCH |
| COPYRIGHT: | © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002 |
NOTE:
TSIB REVISION NOTICE:
- July 24, 2007: The Production Change Information table has been added.
- June 26, 2007: "TSIB UPDATE NOTICE" has been added.
Previous versions of this TSIB should be discarded.
NOTE:
TSIB UPDATE NOTICE:
The information contained in this TSIB supersedes TSIB No. TC001-07.
TSIB No. TC001-07 is now obsolete and should be discarded.
The information contained in this TSIB supersedes TSIB No. TC001-07.
TSIB No. TC001-07 is now obsolete and should be discarded.
Introduction
Some customers may experience a shift flare that is most noticeable after a cold soak under the following operating conditions:
- 3rd to 4th upshift during the first 10 minutes of operation
- 2nd to 3rd and/or 4th to 5th upshift
- 5th to 4th downshift when accelerating from coast or decelerating between 30 - 40 mph
The Transmission Control Module (TCM) logic has been revised to help improve these specific customer concerns. In the event the reflash does NOT completely resolve the issue, the automatic transaxle assembly should also be replaced.
Applicable Vehicles
- 2007 model year ES 350 vehicles produced BEFORE the Production Change Effective VIN shown below.
Production Change Information
PRODUCTION CHANGE INFORMATION
| MODEL | PLANT | PRODUCTION CHANGE EFFECTIVE VIN |
|---|---|---|
| ES 350 | TMC | JTHBJ46G#72134154 |
Warranty Information
WARRANTY INFORMATION
| OP CODE | DESCRIPTION | TIME | OFP | T1 | T2 |
|---|---|---|---|---|---|
| TC7006 | Recalibrate TCM | 0.6 | 89530-33041 | 9A | 99 |
| Combo A | R & R ATM | 7.4 |
Applicable Warranty*:
This repair is covered under the Lexus Powertrain Warranty. This warranty is in effect for 72 months or 70,000 miles, whichever occurs first, from the vehicle's in-service date.
* Warranty application is limited to correction of a problem based upon a customer's specific complaint.
Required Tools & Material
REQUIRED TOOLS AND MATERIAL
| REQUIRED EQUIPMENT | SUPPLIER | PART NUMBER | QTY | |
|---|---|---|---|---|
| TIS Techstream*
NOTE:
Software version 2.00.008 or later is required.
|
ADE | TSUNT | 1 | |
| GR8 Battery Diagnostic Station* | SPX/OTC | 00002-MCGR8 | 1 | |
* Essential SSTs.
NOTE:
- Additional Techstream units may be ordered by calling Approved Dealer Equipment (ADE) at 1-800-368-6787.
- The Lexus Diagnostic Tester and CAN Interface Module may also be used to perform the service procedures listed in this bulletin.
- The GR8 Battery Diagnostic Station (P/N 00002-MCGR8) supersedes the Automatic Trickle Charger (P/N 00002-YA122-01) and Fast Battery Chargers (Associated P/N ASE6003 and Christie P/N CAPPDQ). P/N 00002-YA122-01, ASE6003, and CAPPDQ are now obsolete.
Parts Information
PARTS INFORMATION
| PREVIOUS PART NUMBER | CURRENT PART NUMBER | PART NAME | QTY |
|---|---|---|---|
| N/A | 00451-00001-LBL | Authorized Modifications Label | 1 |
| 30510-33530 | Same | Automatic Transaxle Assembly w/Torque Converter | 1 |
| 89530-33041 | 89530-33042* | Computer, Transmission Control (TCM) | - |
| 00289-ATFWS | Same | ATF WS | As Needed |
* The TCM should NOT be replaced as part of the Repair Procedure.
NOTE:
Authorized Modification Labels may be ordered in packages of 25 from the Materials Distribution Center (MDC) through Dealer Daily Dealer Support Materials System or by calling the MDC at 1-800-622-2033.
Calibration Identification Chart
CALIBRATION IDENTIFICATION CHART
| MODEL YEAR | MODEL | ENGINE | PREVIOUS CALIBRATION ID | NEW CALIBRATION ID |
|---|---|---|---|---|
| 2007 | ES 350 | 2GR-FE | 895363304000 | 895363304200 |
| 895363304100 |
Repair Procedure

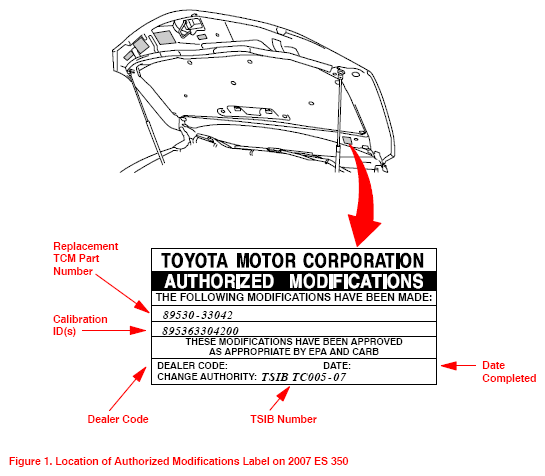

- Check for the Authorized Modifications Label affixed to the vehicle in the location shown in Fig 1. Confirm if the TCM calibration has been updated. If the calibration ID listed is NOT the latest TCM calibration - go to step 2.
- Allow the vehicle to cold soak for a minimum of 4 hours.
- Connect TIS Techstream to DLC3.
- Turn the engine switch ON.
- Turn the TIS Techstream tester ON.
- Enter the following menus on the tester: Vehicle / ECT / Data List.
- Start the engine.
- Test drive the vehicle to duplicate the customer's concern.
If one of the shift flares described in this TSB occurs, flash reprogram the TCM.
- Flash reprogram the TCM.NOTE:
- The GR8 Battery Diagnostic Station MUST be used in Power Supply Mode to maintain battery voltage at 13.5 volts while flash reprogramming the vehicle.
- For details on how to use the GR8 Battery Diagnostic Station, refer to the GR8 Instruction Manual located on TIS, Diagnostics - Battery .
Follow the procedures outlined in TSIB No. L-SB-0015-10 , "Techstream ECU Flash Reprogramming Procedure," and flash the ECM (PCM) with the NEW calibration file update.
- Start the engine and warm it up to normal operating temperature before test-driving.
- Allow the vehicle to cold soak for a minimum of 4 hours.
- Test-drive the vehicle to confirm proper vehicle operation.
- If the condition still exists, remove and replace the automatic transaxle assembly w/torque converter.NOTE: When the automatic transaxle is replaced, the transaxle compensation code MUST be input into the TCM. After the automatic transaxle is reinstalled, the QR code label will be positioned where the code cannot be read. Record the transaxle compensation code BEFORE reinstalling the automatic transaxle.
- After replacement of the transaxle assembly w/torque converter enter the new transaxle compensation code.
Refer to TSIB No. TC002-06 , "U660E Automatic Transaxle Compensation Code Input Process" .
- Install the Authorized Modifications Label.
- Using a permanent marker, enter the following information on the label:
- TCM part number: [Refer to the PARTS INFORMATION section for the CURRENT PART NUMBER ]
- Calibration ID(s): [Refer to the CALIBRATION IDENTIFICATION CHART for the NEW CALIBRATION ID ]
- Dealer Code
- Repair Date
- Change Authority (this TSIB number): TC005-07
- Affix the Authorized Modifications Label to the vehicle at the location shown in Fig 1. The Authorized Modifications Label is available through the MDC, P/N 00451-00001-LBL.
- Using a permanent marker, enter the following information on the label:
- Allow the vehicle to cold soak for a minimum of 4 hours.
- Test-drive the vehicle to confirm proper vehicle operation.
