Compressor And Magnetic Clutch: Components

Fig 1: Identifying Compressor And Magnetic Clutch Replacement Components With Torque Specification (1 Of 4)
G05248684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Compressor And Magnetic Clutch Replacement Components With Torque Specifications (2 Of 4)
G05248685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Compressor And Magnetic Clutch Replacement Components With Torque Specifications (3 Of 4)
G05248966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

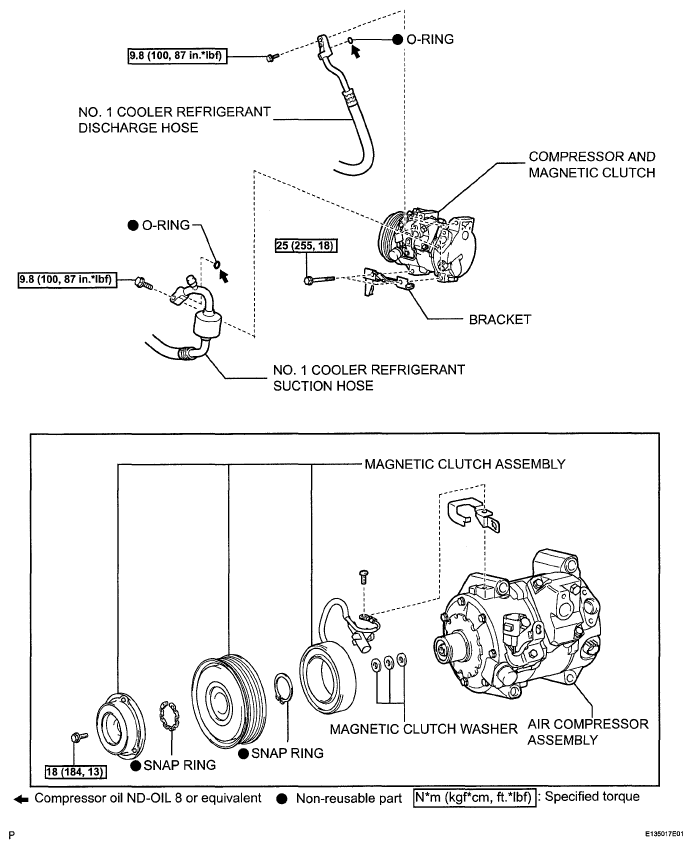

Fig 4: Identifying Compressor And Magnetic Clutch Replacement Components With Torque Specifications (4 Of 4)
G05251267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
