Heater Control Panel Power Source Circuit: Wiring Diagram

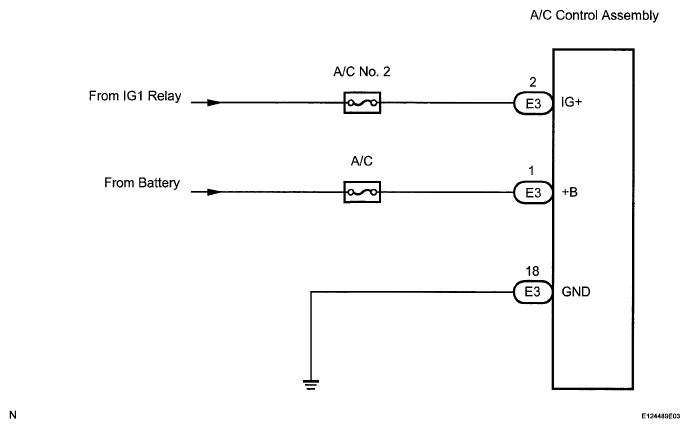

Fig 1: Heater Control Panel Power Source Circuit - Wiring Diagram

G05251135

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
