Power Seat for Front Passenger's Seat without Memory: Notes

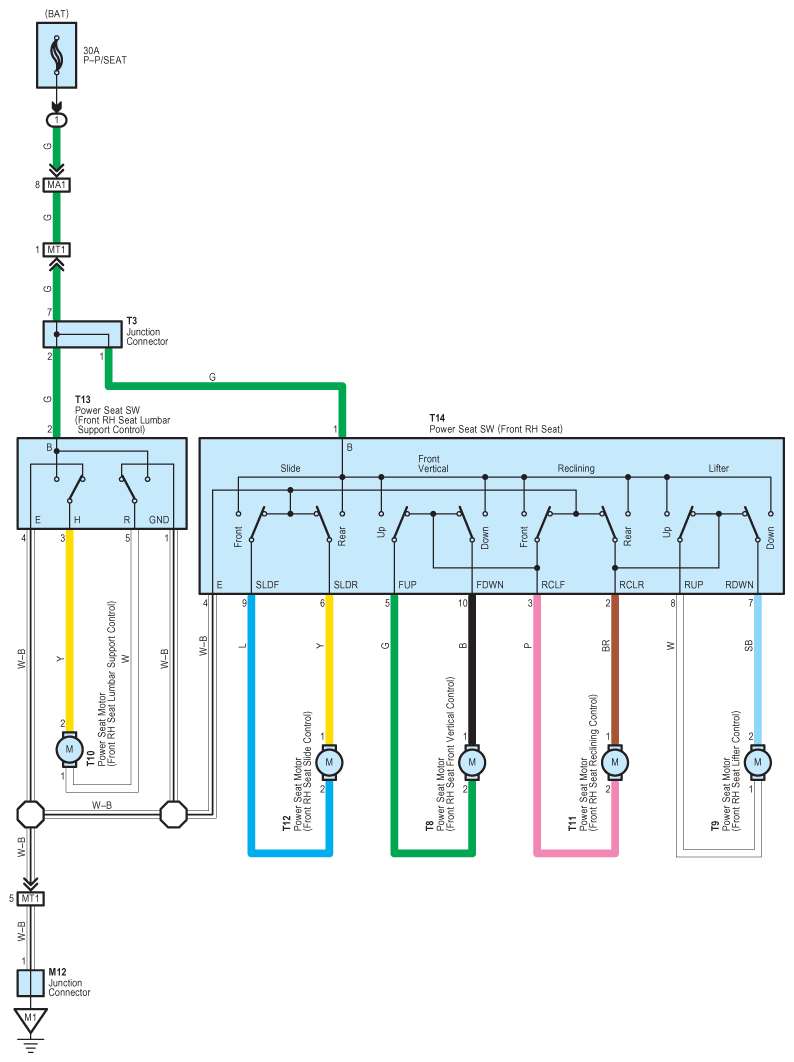

Fig 1: Power Seat For Front Passenger's Seat Without Memory System Wiring Diagram

G08916925

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
