Inspection Procedure

1. Check the DATA LIST to ensure proper function of the door unlock detection switch.

   MAIN BODY:

   DATA LIST CHART



   Item	Measurement Item / Display (Range)	Normal Condition	Diagnostic Note
   RR LOCK POS SW	Rear right door lock position switch signal / ON or OFF	ON: Rear right door lock is in UNLOCK position OFF: Rear right door lock is in LOCK position	-

   OK: The display is as specified in the normal condition column.

NG: Go to step 2

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

1. Remove the rear door lock assembly RH.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Measurement Condition	Door Lock Condition	Specified Condition
   6 - 9	Battery positive (+) → Terminal 4 Battery negative (-) → Terminal 1	Lock	10 kΩ or higher
   6-9	Battery positive (+) → Terminal 1 Battery negative (-) → Terminal 4	Unlock	Below 1 Ω

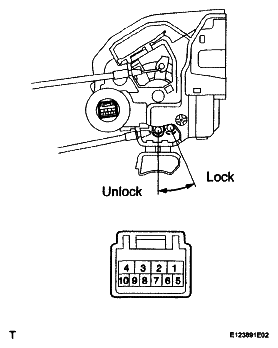

Fig 1: Inspecting Rear Door Lock Assembly (Unlock Detection Switch)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE REAR DOOR LOCK ASSEMBLY

OK: Go to Next Step

1. Disconnect the rear door lock assembly RH connector.

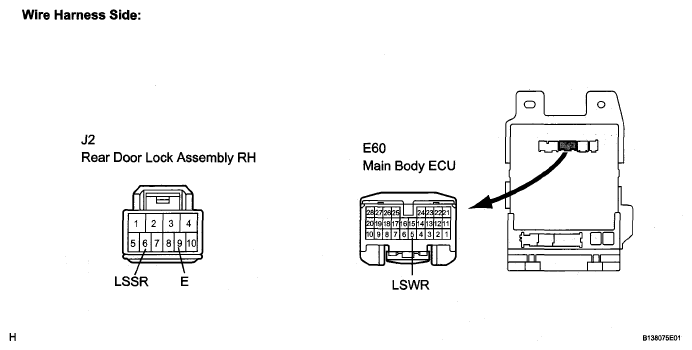

   Fig 2: Checking Wire Harness (Rear Door Lock - Main Body ECU (Instrument Panel J/ B)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the ECU (instrument panel J/B) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection (Symbols)	Condition	Specified Condition
   J2-6 (LSSR) - E60-5 (LSWR)	Always	Below 1 Ω
   J2-6 (LSSR) - Body ground	Always	10 kΩ or higher
   J2-9 (E) - Body ground	Always	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE MAIN BODY ECU (INSTRUMENT PANEL J/B)
